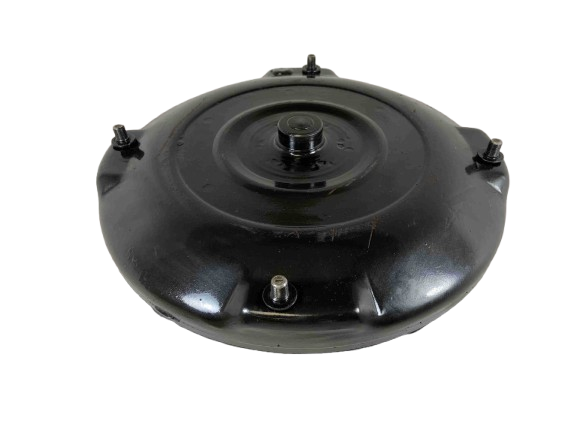

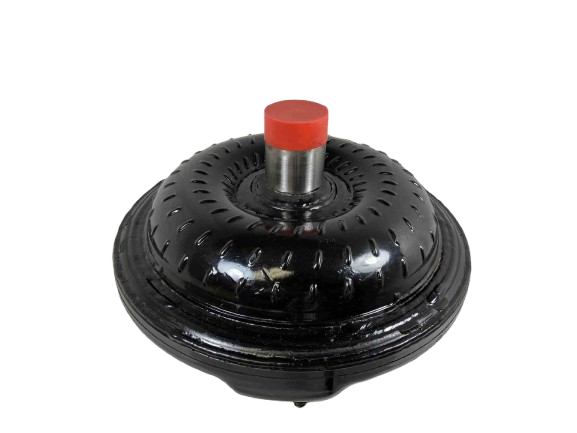

AOD Street Bandit 32-3,600 RPM Lock Up Ford Torque Converter Part Number 26404

Ford AOD Torque Converter - Street Bandit Series

This high-performance torque converter is engineered for the discerning driver who demands reliability and matched performance. Built using a factory 10-inch core, this unit provides the perfect balance of durability and efficiency for your transmission. Ideal for enthusiasts looking to upgrade their driveline with a robust, tested solution.

Designed specifically for the 3-step input shaft, this Street Bandit Series converter ensures smooth operation and optimal power transfer across demanding driving conditions. Quality inspections are performed at every step to guarantee peak performance upon installation.

Key Specifications

• Transmission Type: Ford AOD
• Series: Street Bandit Series
• Part Number: 26404
• Input Shaft: 35 Spline (Factory 1.375 inch Crank Pilot)
• Stall Range: 3,200 - 3,600 RPM Stall
• Core/Cover: Factory 10 inch Core with factory front cover
• Bolt Circle: 11.7/16 inches
• Impeller Hub: Hardened Chrome Moly with Modified Heavy Duty Stator
• Bearings: Torrington Style Incased Bearings
• Lock Up Clutch: Over Sized Extreme Duty
• Plates: No Anti-Balloon Plates
• Finish: 4 Corner Tac Welded Fins or Furnace Brazed

Installation & Performance Notes

• All advertised stall ranges are based on a specific vehicle's setup and may vary depending on your unique application. Please contact us for detailed information.
• We recommend upgrading to an "Out Law Series" torque converter if your vehicle utilizes power adders such as Nitrous Oxide, Turbochargers, Superchargers, or features a Transmission Brake.

Optimal Performance Tips

• Use Original Type F transmission fluid for the best shift quality and longevity.
• Consider using an additional BOSS HOG Transmission Cooler to maintain ideal operating temperatures.
• Apply Blue Loctite for secure component assembly during installation.

MADE IN THE USA. Building High Performance & Racing Converters Since 1970! Veteran Owned and Family Run.

Need sizing advice? Click here for converter sizing information tailored to your transmission model.

📞 Contact us today at (888) 267-7464 to discuss your setup or inquire about our "No Prep Racing Converters."
