AOD Night Stalker Stock Replacement No Stall Added Lock Up Ford Torque Converter Part Number 26400

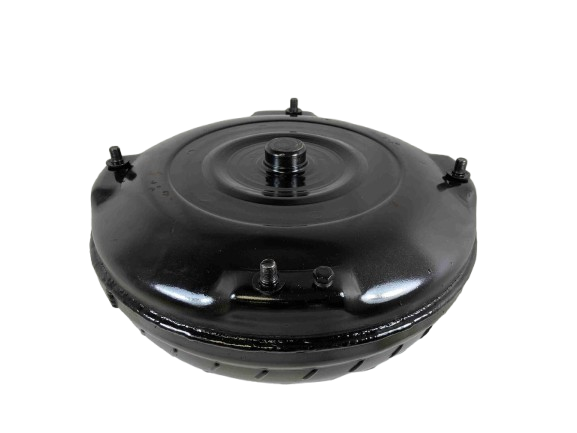

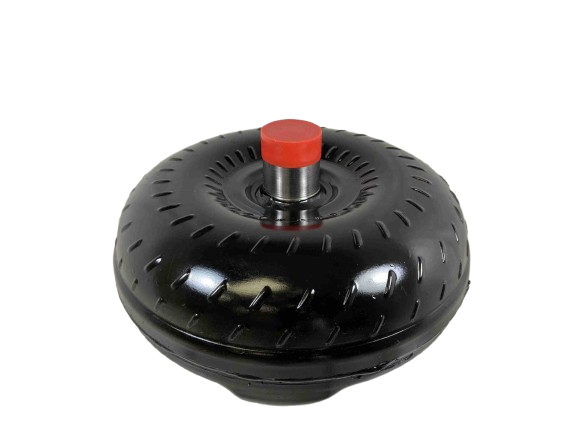

Ford AOD Night Stalker Series Torque Converter - Part Number 26400

Built for demanding applications, this Night Stalker Series torque converter is engineered to deliver robust power transfer and exceptional durability for your specific transmission setup. Manufactured in the USA, this unit is meticulously inspected to ensure peak performance and flawless operation from installation.

Key Product Specifications

• Transmission Type: Ford AOD
• Series: Night Stalker Series
• Part Number: 26400
• Input Shaft: 3 Step Input Shaft
• Core Diameter: Factory 12-Inch Core
• Stall Range: Stock Stall (No additional stall added)
• Bolt Circle Diameter: 11.7/16 inches
• Impeller Hub Material: Hardened Chrome Moly

Construction & Performance Features

• 35 Spline Input Shaft
• Modified Heavy Duty Stator
• Torrington Style Incased Bearings
• Over Sized Extreme Duty Lock Up Clutch
• Factory 1.375 Inch Crank Pilot
• Bolt Size: 3/8 X 24 TPI Nuts
• High-Quality Assembly: 4 Corner Tac Welded Fins or Furnace Brazed

Manufacturing Excellence

• Leak & Pressure Tested to rigorous standards
• Digitally Balanced for smooth operation
• Undergoes Quality Inspections at Every Step
• Proudly Made in the USA

Installation and Care

• Use Old School Type F Transmission Fluid for the best performance
• Always utilize an additional transmission cooler
• Use Blue Loctite during assembly for maximum reliability

Important Information

• All advertised stalls are based on a specific vehicle's setup, and all stall ranges may vary depending on your vehicle's application. Please contact us for consultation at (888) 267-7464.
• For builds requiring extreme performance, we recommend considering our "Street Bandit Series" (if upgraded intake/exhaust are present) or the high-power "Out Law Series" (for applications involving Nitrous, Turbochargers, or Supercharging).

Visit our page with the specific part chart if you require installation dimensions for your transmission model. Building high performance since 1970! Veteran owned and family run.
