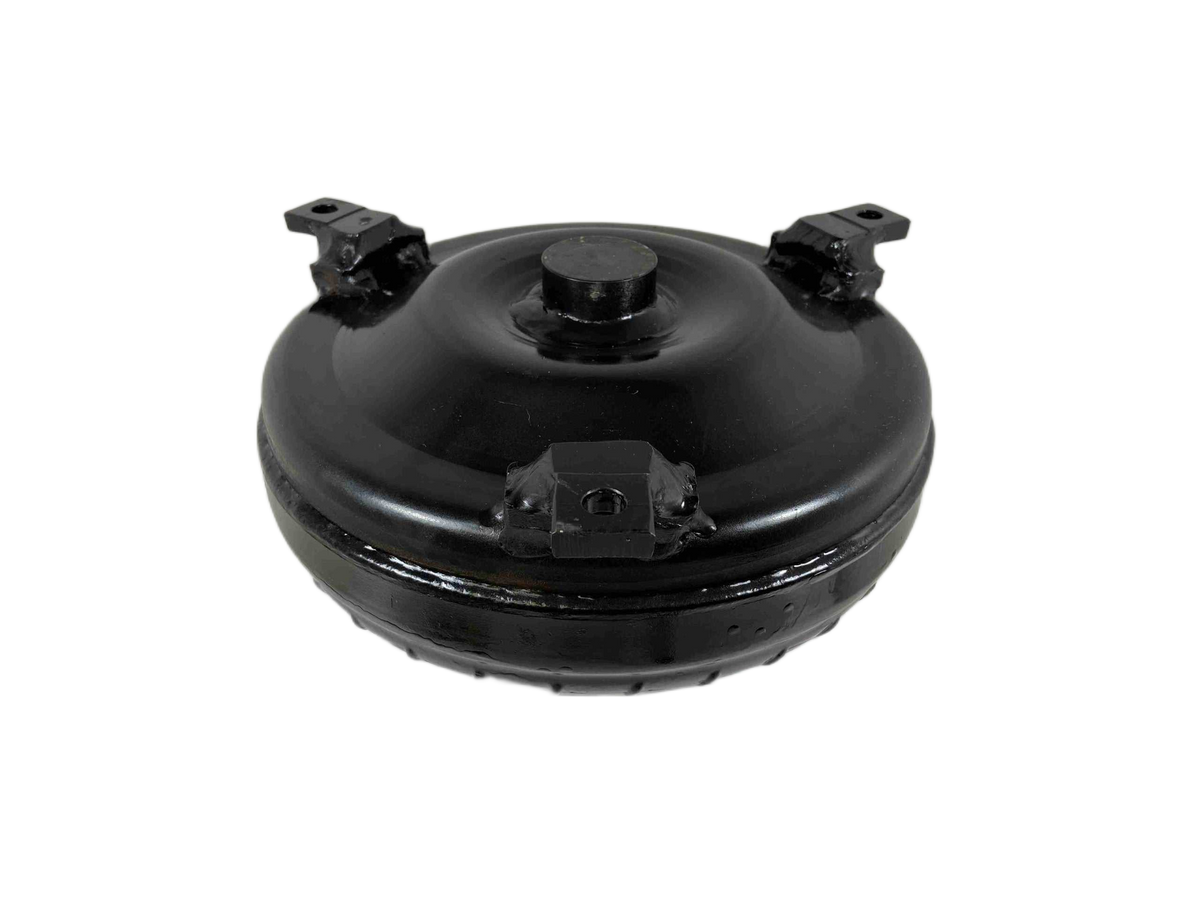

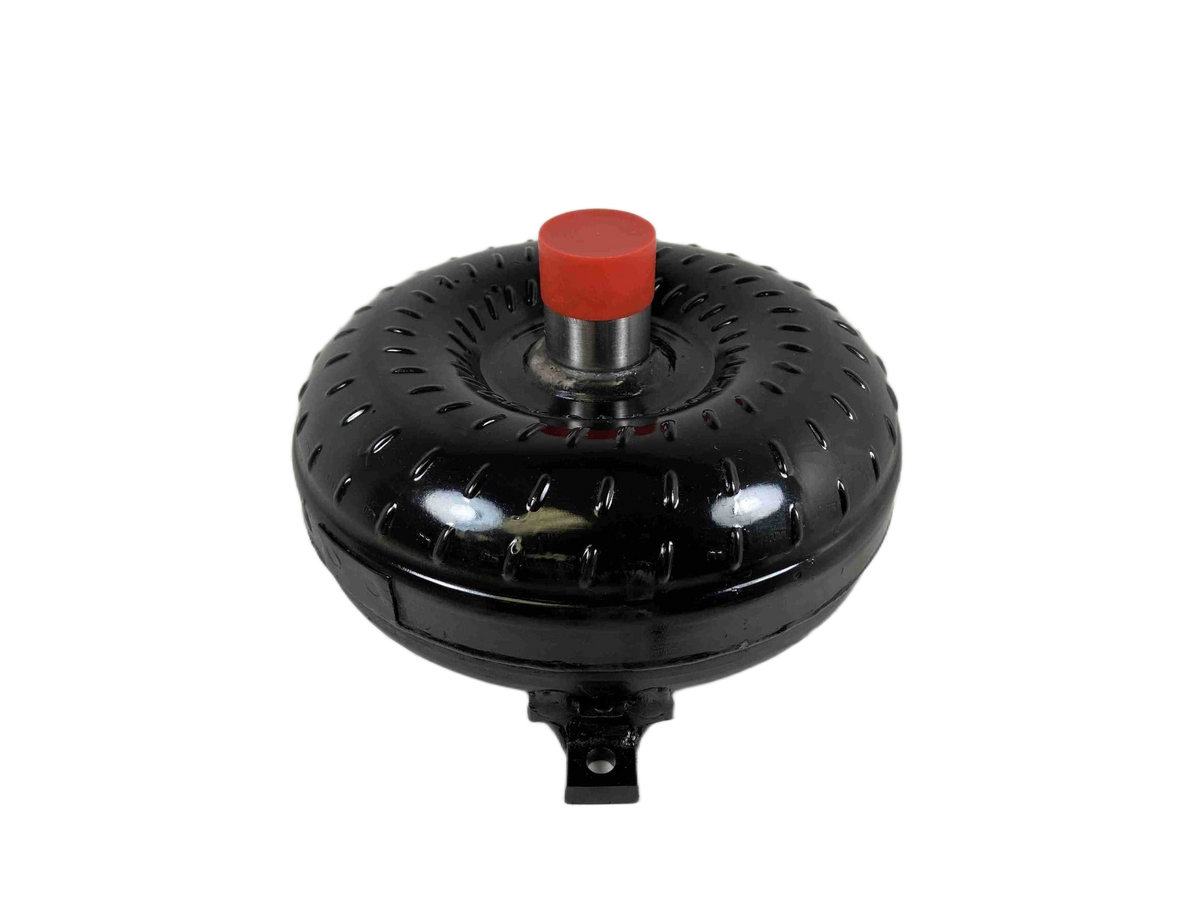

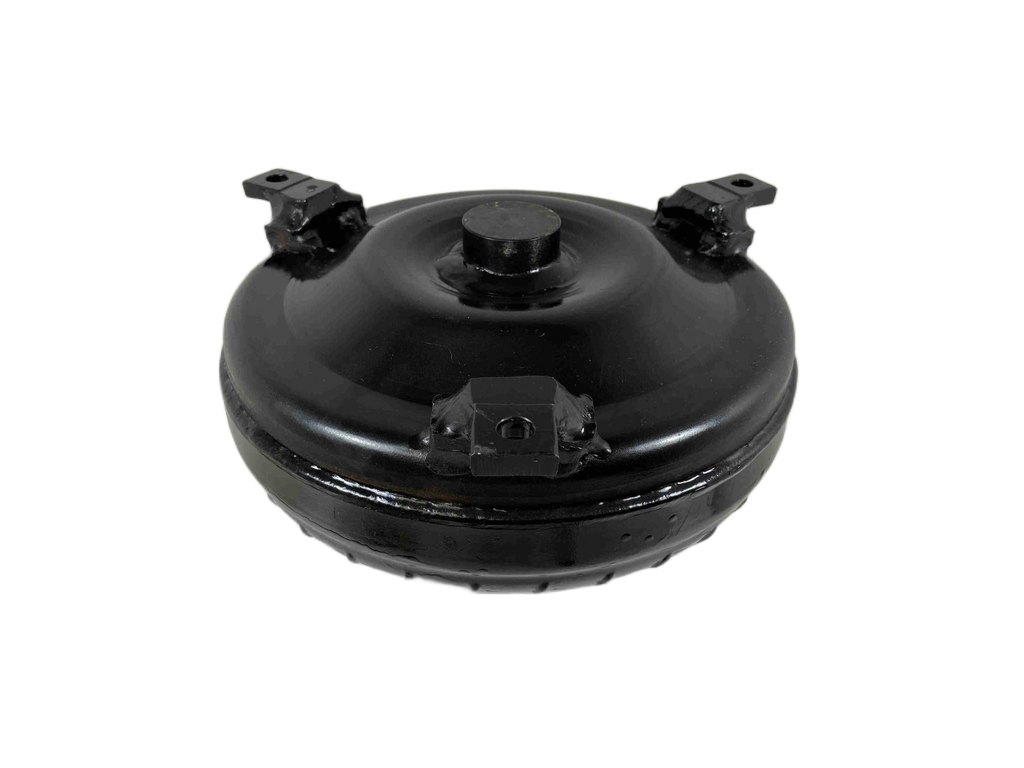

700R4 Street Bandit 35-4,200 RPM Lock Up GM Torque Converter Part Number 48445

GM Chevy 700R4 298mm Street Bandit Series Torque Converter - Part #48445

Unlock the full potential of your LT type engine with our premium Street Bandit Series torque converter. Engineered for demanding applications including chopped cams and lightweight builds, this high-performance unit is designed to deliver reliable performance and extreme duty when paired with the 3 step Input Shaft. Built in the USA, this converter provides a matched combination of durability and precise staging to handle your specific power application.

This conversion is ideal for enthusiasts seeking a robust upgrade that maintains operational efficiency while providing enhanced durability and fast performance response.

Specifications

• Transmission Compatibility: Fits LT type Engines (3 step Input Shaft required)
• Series: Street Bandit Series
• Part Number: 48445
• Stall Range: 3,500 - 4,200 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft: 30 Spline Input Shaft

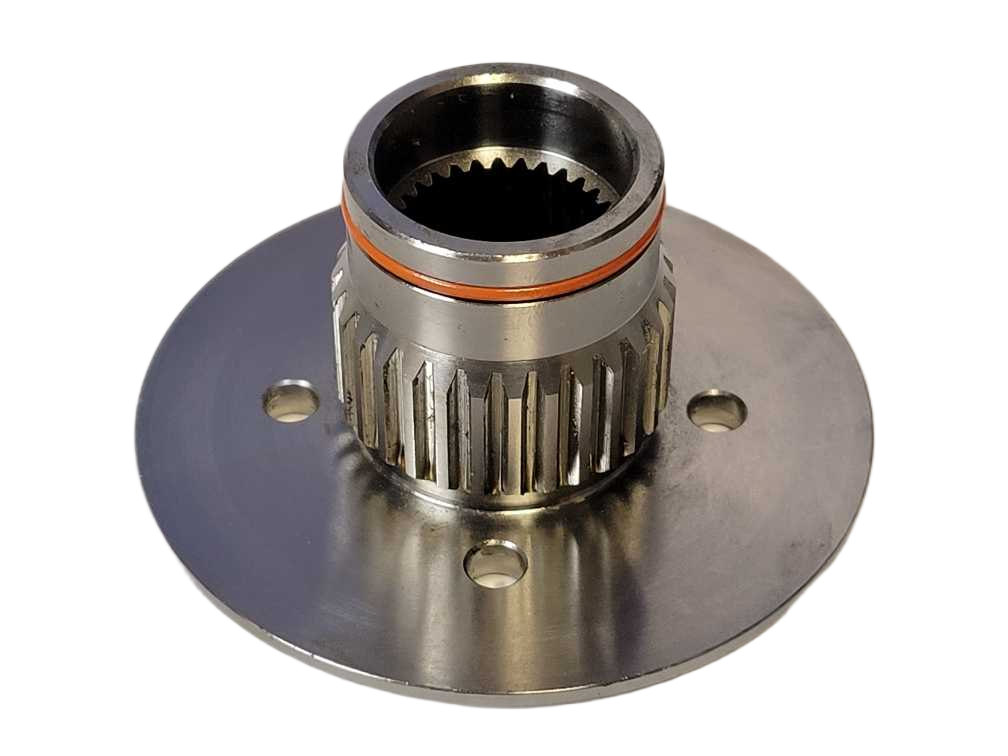

• Construction: Hardened Chrome Moly Hub, Torrington Style Incased Bearings
• Stator: Modified Heavy Duty Stator with Anti-Balloon Plates

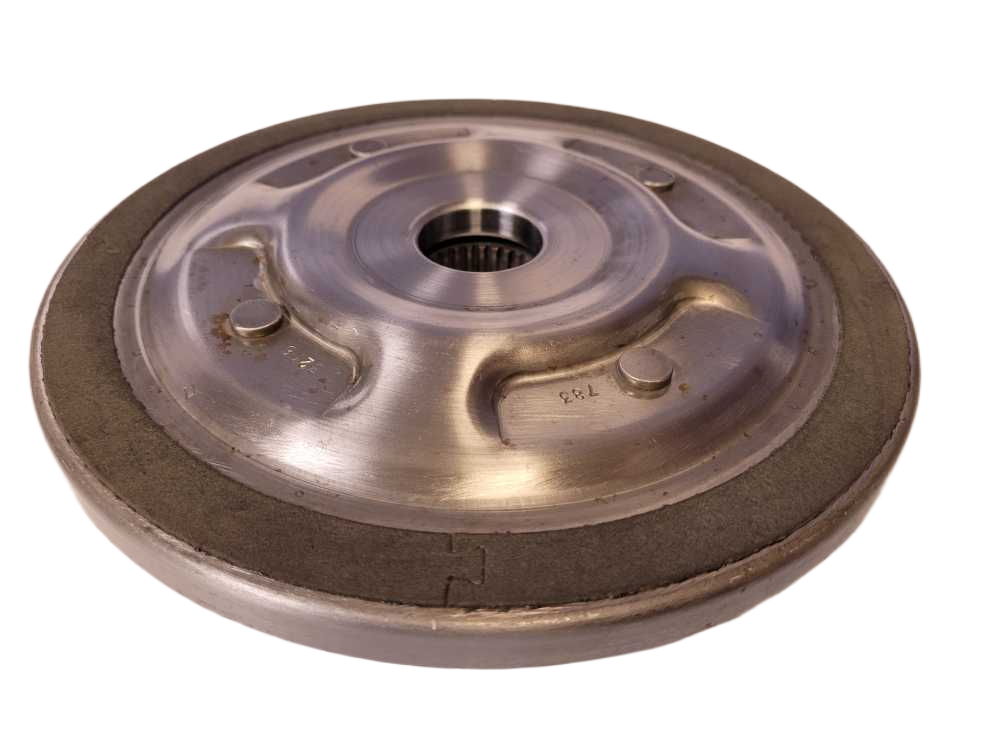

• Lock Up: Extreme Duty Sealed Lock Up (deleted end of input shaft O-Ring)
• Pilot Diameter: 1.703 inch Crank Pilot (Precision CNC Machined)
• Bolt Size: 3/8 X 16 TPI (Grade 8 bolts recommended)

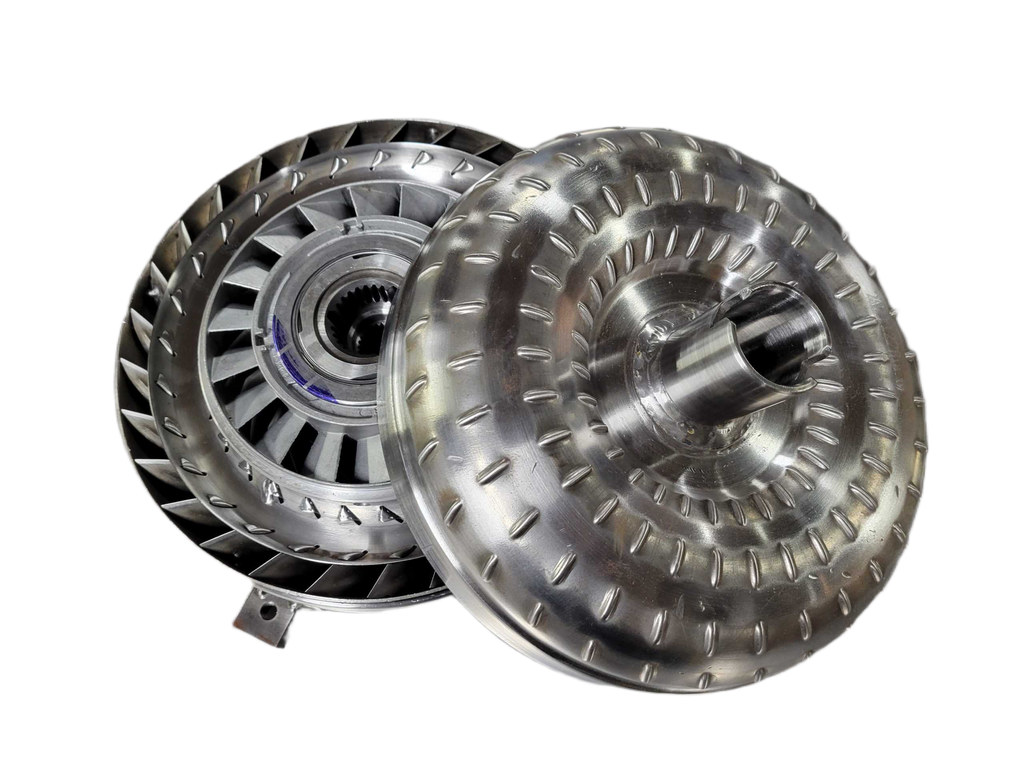

• Additional Features: Digitally Balanced, Leak & Pressure Tested, 4 Corner Tac Welded Fins or Furnish Brazed

Application Details

• Suitable for: Choppy Cams and Lightweight Vehicle Builds
• High Performance Applications: Recommended pairing with "Out Law Series" for use with Nitrous Oxide, Turbocharger(s), Supercharger, or Trans Brakes.

Performance & Installation Advice

• Use Old School Type F transmission fluid for optimal performance.
• Always include a quality transmission cooler when installing this converter.
• Use Blue Loctite on fitting threads for maximum security.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup; actual performance will vary depending on your unique application. Please contact us for personalized advice regarding your vehicle setup.
• We specialize in building high-performance and racing converters since 1970.

Disclaimer: This product carries a P65 Warning regarding Cancer and Reproductive Harm.
