700R4 Street Bandit 28-3,200 RPM Lock Up GM Torque Converter Part Number 48453

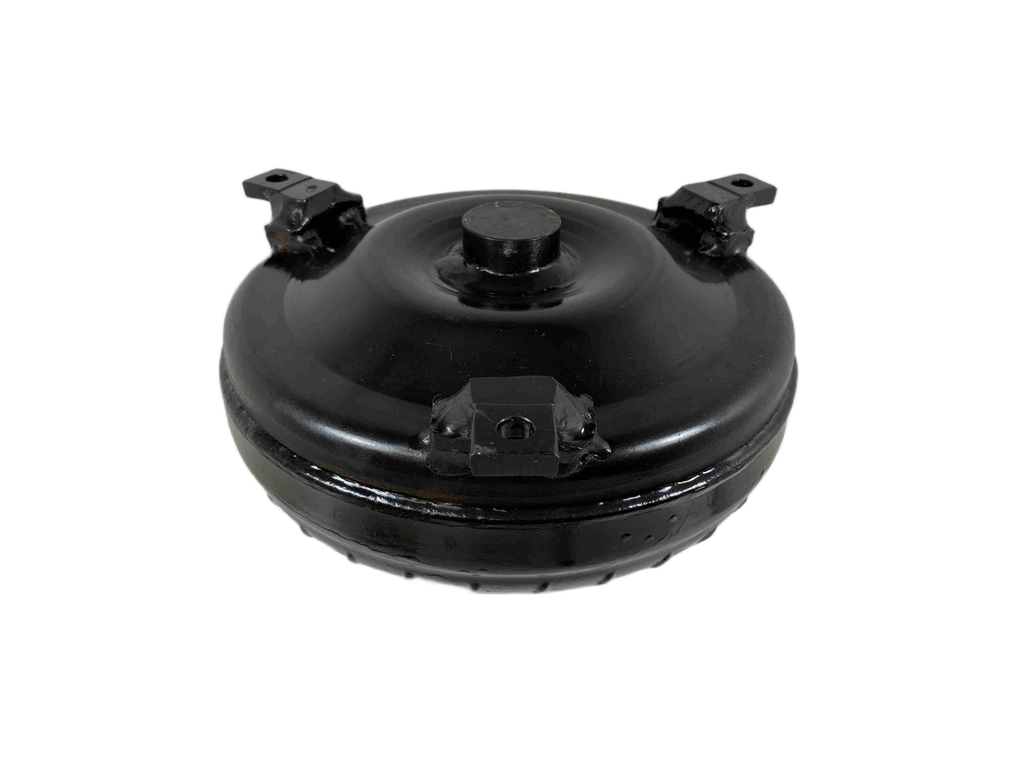

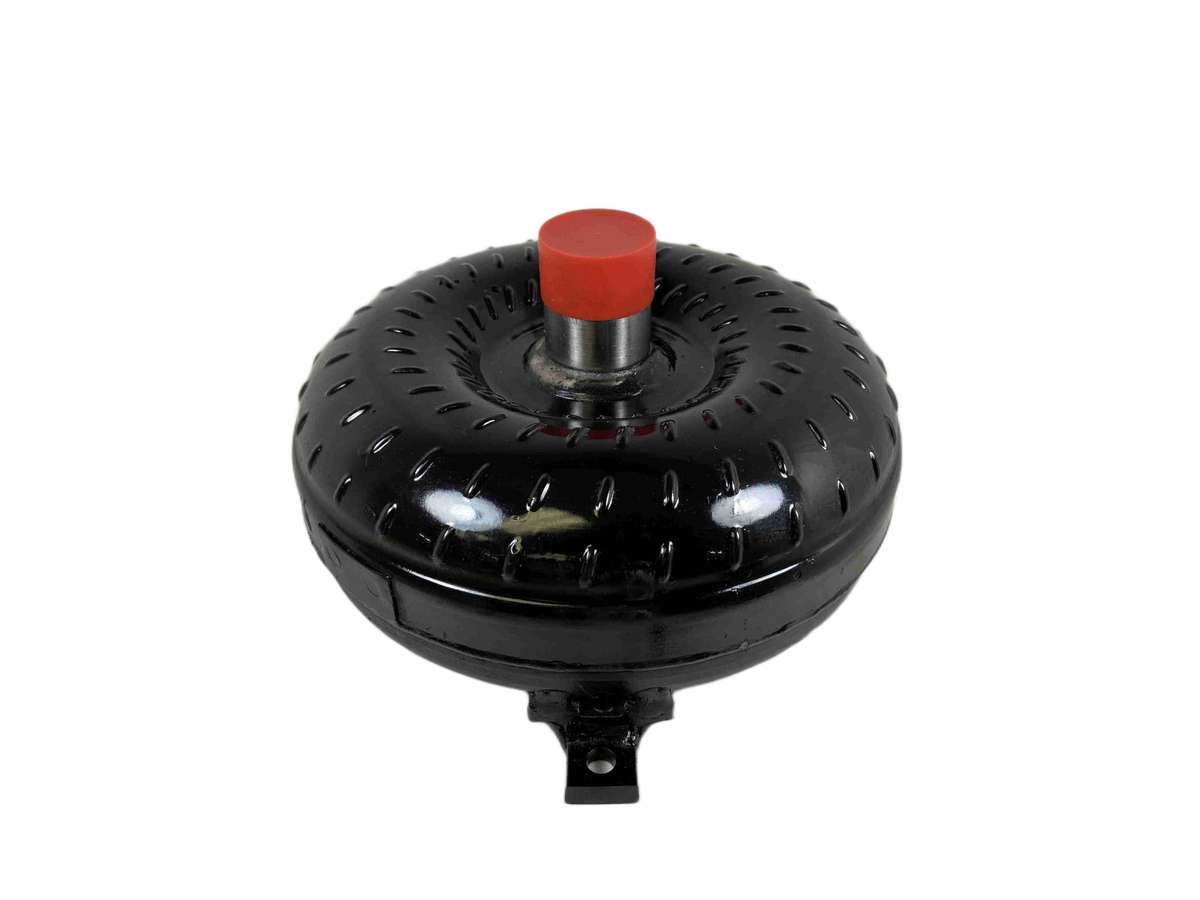

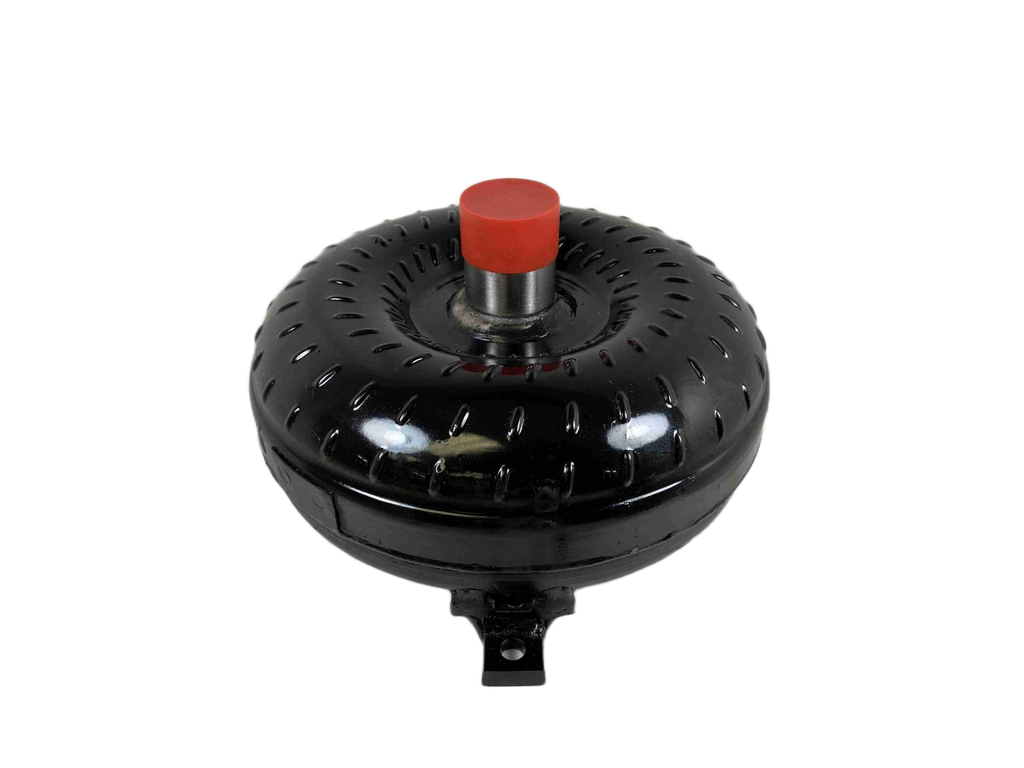

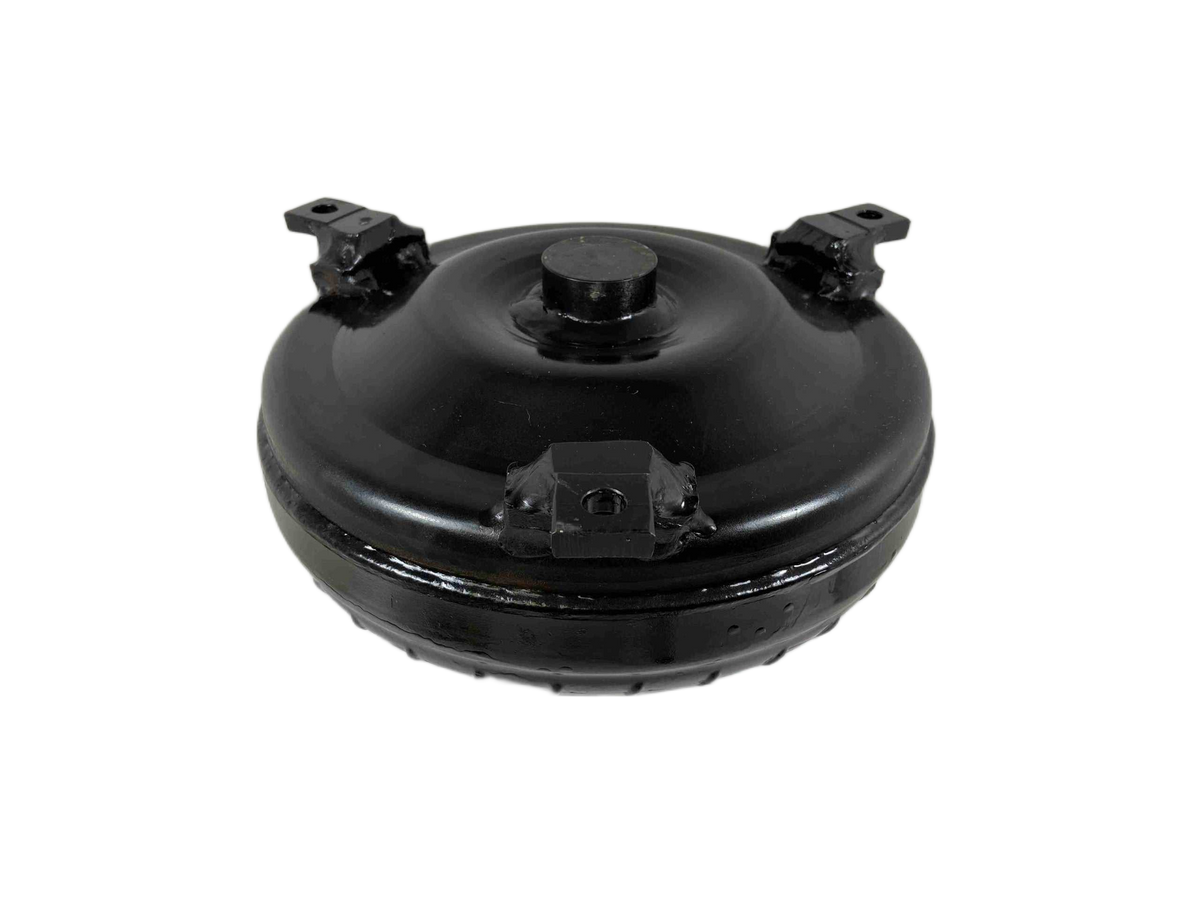

GM Chevy 700R4 Street Bandit Series Torque Converter - Part Number 48453

Engineered for demanding driving conditions, this Street Bandit Series torque converter is the perfect match for your LT type GM applications. Designed with extreme duty components and a precision-machined construction, it delivers reliable performance whether you are handling choppy cams or building a high-performance racing machine. Rest assured, every unit undergoes rigorous quality inspections and leak/pressure testing before shipping.

Key Product Specifications

• Application Compatibility: LT Type Engines, 3-Step Input Shaft
• Part Number: 48453
• Series: Street Bandit Series
• Torque Converter Size (Core): 298mm (9.6 inch)
• Stall Range: 2,800 – 3,200 RPM
• Input Shaft: 30 Spline Input Shaft (Optimized for counts of smaller splines)
• Bolt Circle Diameter: 10.75 inches

Premium Construction & Performance Features

• Super Lightweight Lock Up Converter for optimal shifting

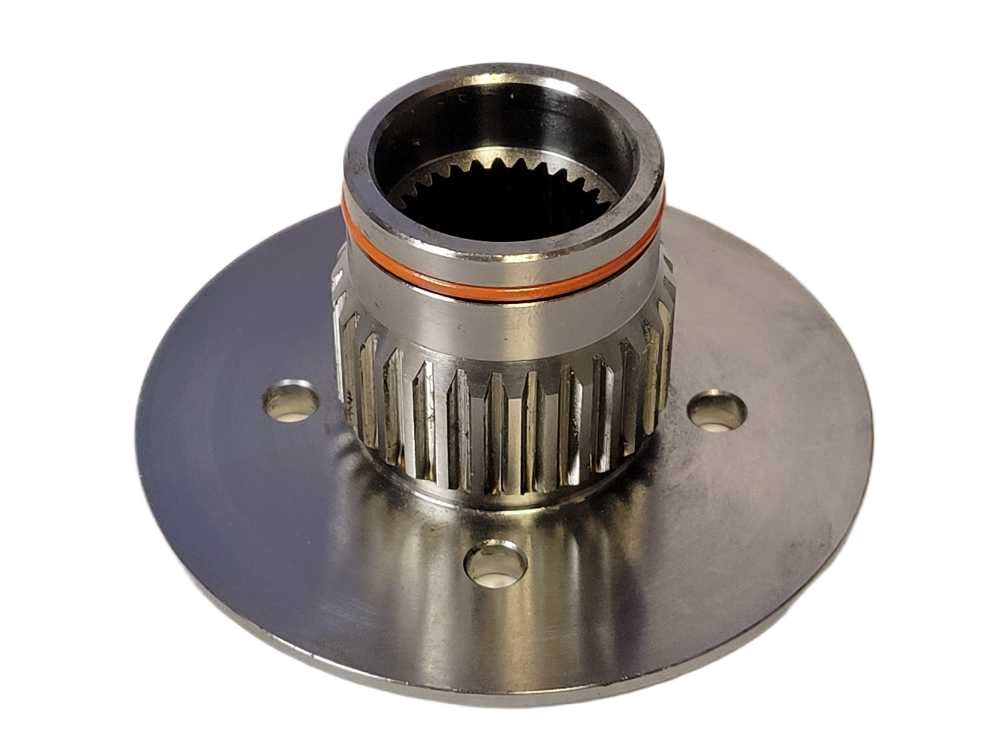

• Hardened Chrome Moly Hub with Torrington Style Incased Bearings

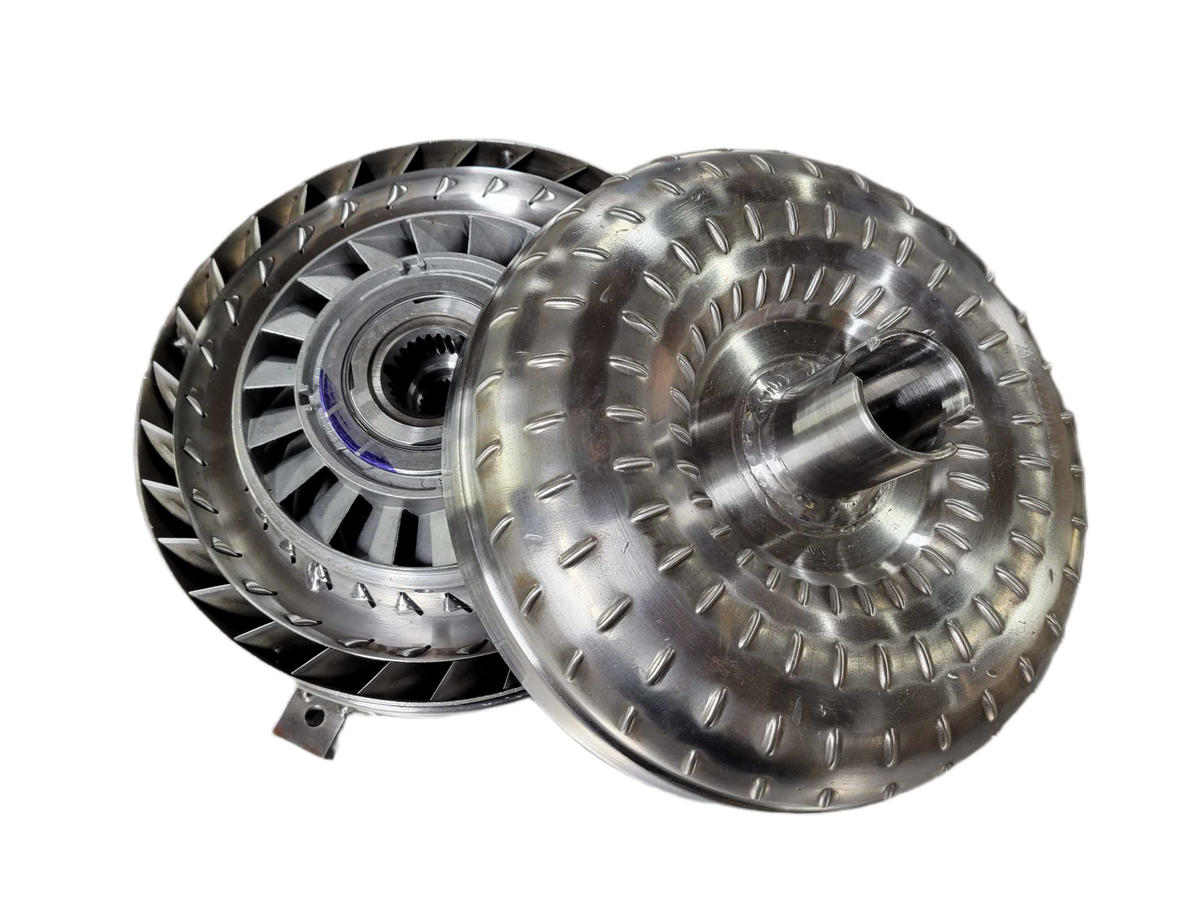

• Modified Heavy Duty Stator ensures robust fluid transfer
• Digitally Balanced and undergoes leak & pressure testing for maximum reliability
• Precision CNC Machined 1.703-inch Crank Pilot

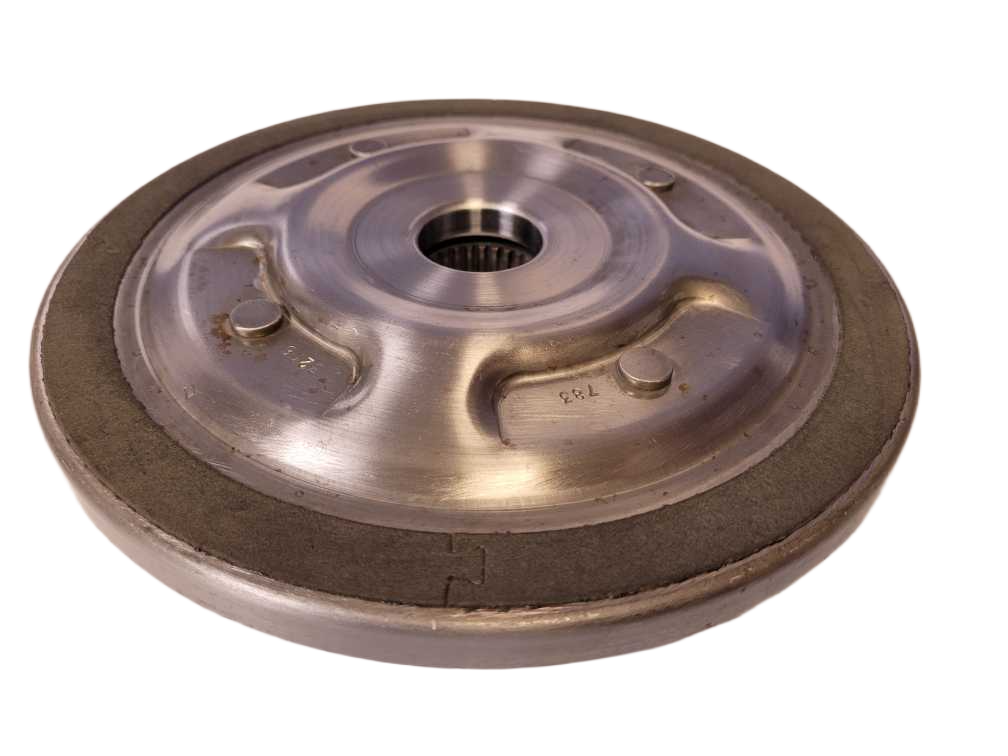

• Extreme Duty Lock Up mechanism for efficient power transfer

Installation & Setup Guidance

• Use Old School Type F transmission fluid for best operational results.
• An additional transmission cooler is recommended for high-heat applications and extended drives.
• Apply Blue Loctite during installation to ensure secure assembly.

Important Considerations

• All advertised stall ranges are dependent on the specific vehicle's drivetrain setup and power application. Please contact us for consultation regarding your unique configuration.
• For extreme high-performance builds involving power adders (Nitrous, Turbocharger, Supercharger), we recommend upgrading to our dedicated "Outlaw Series" torque converter.

Building High Performance & Racing Converters Since 1970! Located in the USA, we are committed to quality. Contact us at 888-267-7464 with any product inquiries.
