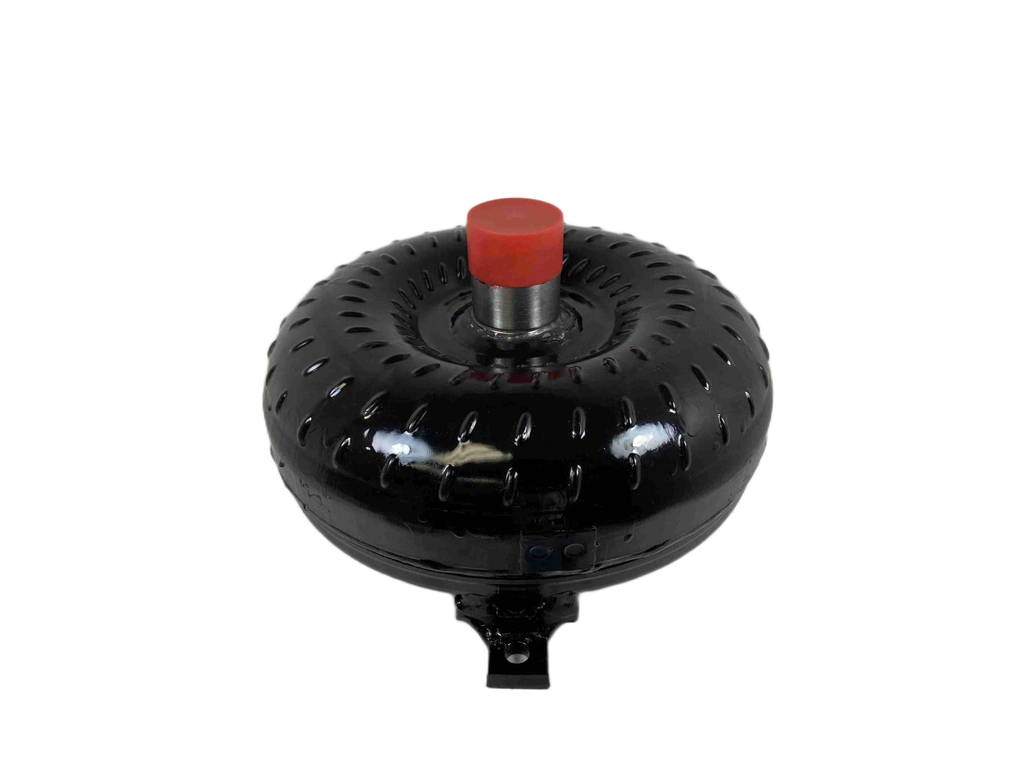

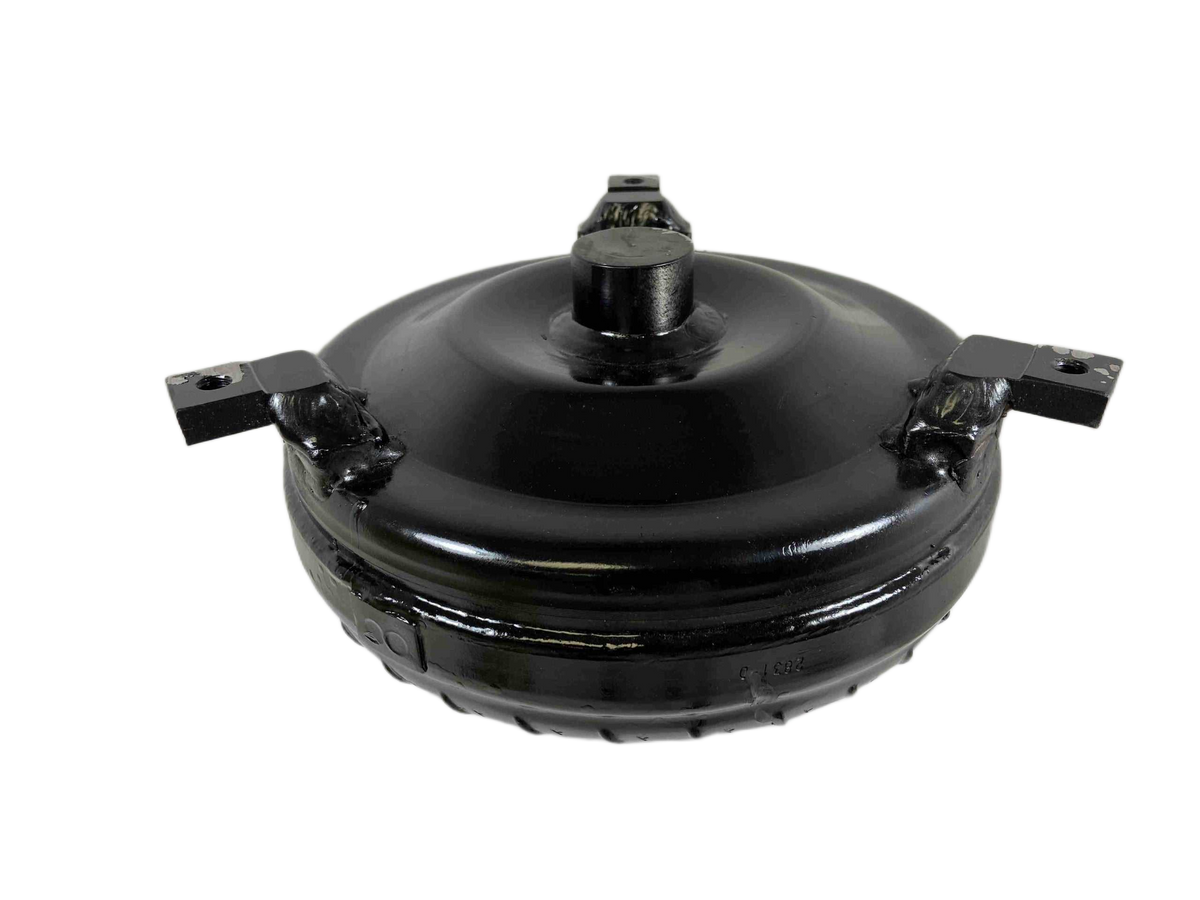

700R4 4L60E 298mm Street Bandit 32-3,500 RPM LS Direct Fit Lock Up GM Torque Converter Part Number 48544

GM LS Chevy 700R4 4L60E Direct Fit Torque Converter - Street Bandit Series

Ensure seamless power transfer and extreme durability with this high-performance torque converter, engineered specifically for the GM LS engine platform. As a Direct Fit unit in our Street Bandit Series, this converter delivers reliable performance and superior cooling capacity required for demanding applications. Constructed with extreme duty components and precision machining, it handles the rigors of aggressive driving while maintaining perfect synchronization with your powertrain.

This Super Lightweight Lock Up Converter is designed not only for performance but also for longevity, utilizing high-quality Torrington Style Incased Bearings and a Modified Heavy Duty Stator. It is built by experienced craftsmen who have been building high-performance converters since 1970.

Product Specifications

• Transmission Compatibility: 700R4 / 4L60E (LS Type Engines)
• Series: Street Bandit Direct Fit Series
• Part Number: 48544
• Stall Range: 3,200 - 3,500 RPM
• Torque Converter Diameter: 298mm
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 11.063 inches (Factory LS Bolt Circle)
• Input Shaft: 30 Spline
• Hub Material: Hardened Chrome Moly

Key Performance Features

• Extreme Duty Lock Up operation for maximum efficiency.
• Precision CNC Machined construction including a 1.703 inch Crank Pilot, extended for LS fitment.
• High-quality construction includes a Modified Heavy Duty Stator and Torrington Style Incased Bearings.
• Rugged build includes a 3/8 X 16 TPI Grade 8 bolt size and robustly welded quarter-corner fins.
• Built leak and pressure tested, digitially balanced, and includes a deleted input shaft O-Ring requirement for easier installation.

Installation and Usage Notes

• For optimal results, use proper ATF transmission fluid specified for your application.
• Always utilize a transmission cooler when operating this unit, especially in high-heat environments.
• Apply Blue Loctite to ensure maximum security of all bolts.
• Stall ranges are highly dependent on your specific vehicle setup and tuning; please contact us at 888-267-7464 for consultation.
• For high horsepower applications including Nitrous Oxide, Turbocharger systems, or Superchargers, we recommend upgrading to our "Out Law Series" torque converter.

Proudly Made in the USA. We stand behind our Veteran and Family Owned business since 1970. Browse our catalog for the perfect match to your high-performance powertrain needs.
