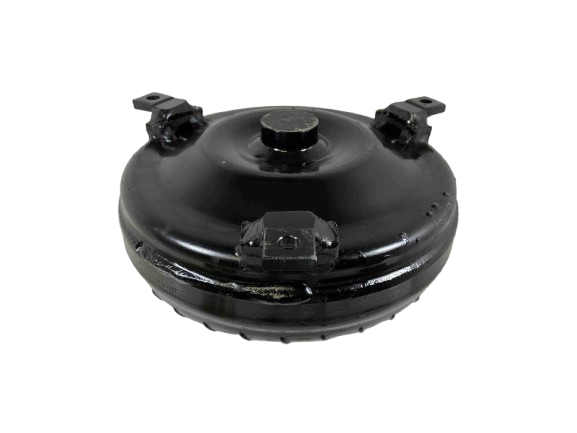

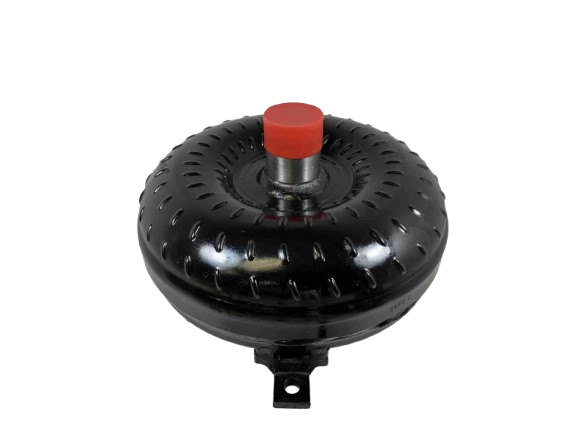

700R4 298mm Street Bandit 32-3,500 RPM NON-Lock Up GM Torque Converter Part Number 48074

GM Chevy 700R4 298mm Street Bandit Series Non-Lock Up Torque Converter

Engineered for applications requiring aggressive performance and rapid response, this Street Bandit Series torque converter is the perfect fit for your LT type drivetrain. Designed to accompany a 3-step Input Shaft, this Super Lightweight Non-Lock Up Converter provides superior performance in chopped cam and high-performance setups while ensuring durability under demanding driving conditions. Manufactured with precision components for maximum reliability in your high-performance vehicle build.

Key Product Details

• Transmission Type: GM Chevy 700R4
• Series: Street Bandit Series
• Part Number: 48074
• Application: LT Type Engines (3-step Input Shaft)
• Torque Converter Style: Super Lightweight, Non Lock Up

Technical Specifications

• Stall Range: 3,200 - 3,500 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft Spline Count: 30 Spline (Count smaller splines)
• Design Elements: Hardened Chrome Moly Hub, Torrington Style Incased Bearings, Modified Heavy Duty Stator
• Crank Pilot: 1.703 inch Precision CNC Machined
• Bolt Size: 3/8 X 16 TPI (Grade 8 only)
• Additional Features: Anti-Balloon Plates, No Lock Up conversion, Quality Tested (Leak & Pressure Tested, Digitally Balanced)

Installation and Performance Guidance

• For optimal performance, utilize Old School Type F Transmission Fluid.
• Always use an additional transmission cooler when operating this unit.
• Use Blue Loctite on fasteners for maximum security.

Important Notes

• Advertised stall ranges are based on specific vehicle setups and may vary depending on your application. Please contact us for personalized advice regarding your setup.

Our commitment to high performance builds began in 1970. If your application includes power adders such as Nitrous Oxide (NOS), Turbocharger(s), or Supercharger, we highly recommend upgrading to our "Out Law Series" torque converters for matched performance and reliability.
