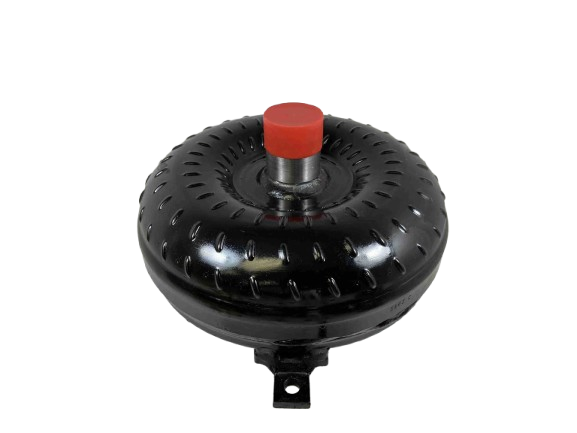

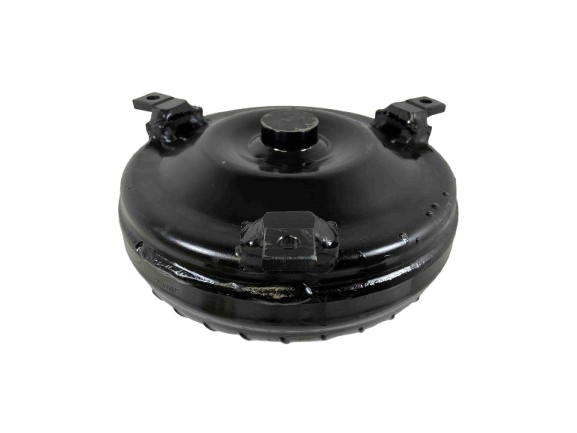

700R4 298mm Street Bandit 28-3,200 RPM NON-Lock Up GM Torque Converter Part Number 48073

Street Bandit Series Torque Converter | GM Chevy 700R4 (Part #: 48073)

Engineered for reliable, high-performance street applications, this Street Bandit Series Torque Converter is the perfect match for LT type transmissions requiring a quality NON-LOCK UP conversion. Designed to handle choppy cams and lightweight vehicles, this unit delivers optimized performance while maintaining durability through rigorous quality inspections.

Product Specifications

• Transmission Application: GM Chevy 700R4 (For 3 Step Input Shaft)
• Series: Street Bandit Series
• Part Number: 48073
• Torque Converter Type: NON-LOCK UP, Super Lightweight Design
• Stall Range: 2,800 - 3,200 RPM
• Core Size: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft Spline Count: 30 Spline
• Crank Pilot Size: 1.703 inch Precision CNC Machined
• Bolt Specs: 3/8 X 16 TPI (GRADE 8 Hardware Required)
• Internal Components: Hardened Chrome Moly Hub, Torrington Style Incased Bearings, Modified Heavy Duty Stator

Key Performance Features

• Digitally Balanced for smooth, worry-free installation.
• Leak and Pressure Tested before shipment.
• Built with anti-balloon plates to enhance structural integrity under load.

Installation Guidance

• Use Old School Type F Transmission Fluid for optimal operation.
• Always pair with an additional transmission cooler to manage heat efficiently.
• Apply Blue Loctite during assembly for a secure installation.

Important Considerations

• Advertised stall ranges are based on specific vehicle setups; actual performance may vary. Please contact us for detailed information at 888-267-7464.
• For applications involving power adders such as Nitrous Oxide (NOS), Turbochargers, or Superchargers, we recommend upgrading to our "Out Law Series" Torque Converter for maximum durability.

Building High Performance & Racing Converters Since 1970! MADE IN THE USA.
