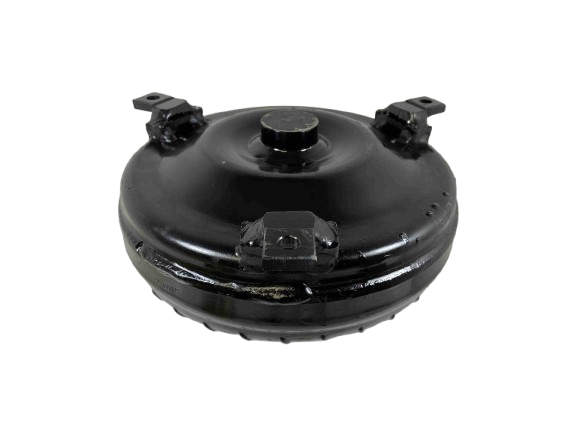

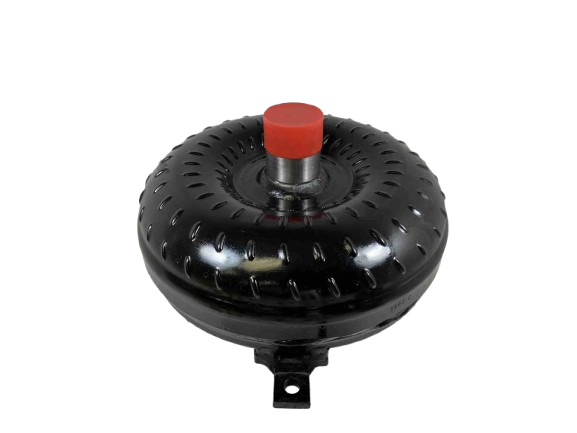

700R4 298MM Street Bandit 22-2,800 RPM NON-Lock Up GM Torque Converter Part Number 48072

GM Chevy 700R4 NON-Lock Up Torque Converter – Street Bandit Series

Designed specifically for LT type engines, this Super Lightweight NON-Lock Up Torque Converter is the perfect upgrade for high-performance street builds and choppers. Featuring a robust Torrington style construction, this converter delivers reliable performance matched with controlled stall capabilities, ideal for choppy cams and lightweight applications.

This conversion includes a 3-step input shaft designed for durability and precision, ensuring smooth power transfer while maintaining the unique character of your transmission setup.

Key Specifications

• Transmission Type: GM Chevy 700R4
• Series: Street Bandit Series
• Part Number/Equivalent: 48072 (NON-LOCK UP)
• Stall Range: 2,200 – 2,800 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft: 3-Step, 30 Spline
• Construction: Hardened Chrome Moly Hub
• Bearing System: Torrington Style Incased Bearings
• Stator: Modified Heavy Duty Stator
• Crank Pilot Precision: 1.703 inch, CNC Machined
• Bolt Specification: 3/8 X 16 TPI (Grade 8 Hardware Only)
• Features: Digitally Balanced, Leak & Pressure Tested

Performance Features

• Super Lightweight Design for optimal cooling and operation.
• Suitable for Choppy Cams and applications where controlled slip is desired.
• High-quality construction, including quality inspections at every step.
• Enhanced durability with original fabrication methods (4 Corner Tac Welded Fins or Furnished Brazed).

Installation and Care

• For best results, utilize Old School Type F Transmission Fluid.
• Consider installing an additional transmission cooler to manage heat under performance use.
• Apply Blue Loctite for secure assembly and maintenance.

Important Notes:

• All advertised stall ranges are based on specific vehicle setups and may vary greatly depending on your application. Please contact us for tailored advice.
• We recommend upgrading to our "Out Law Series" torque converter if you incorporate power adders such as Nitrous Oxide, Turbochargers, Superchargers, or Trans Brakes.

Building High Performance & Racing Converters Since 1970! We are dedicated to providing you with quality components manufactured in the USA.
