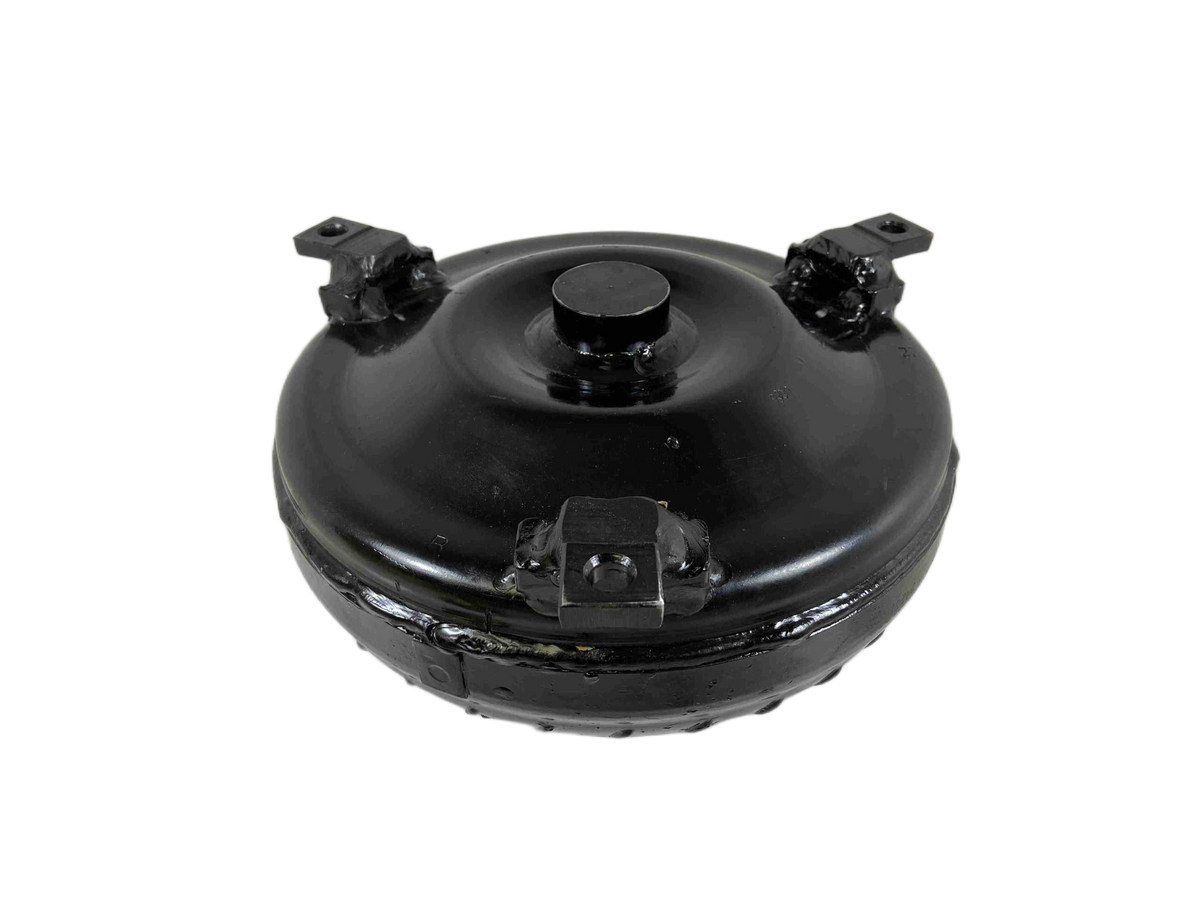

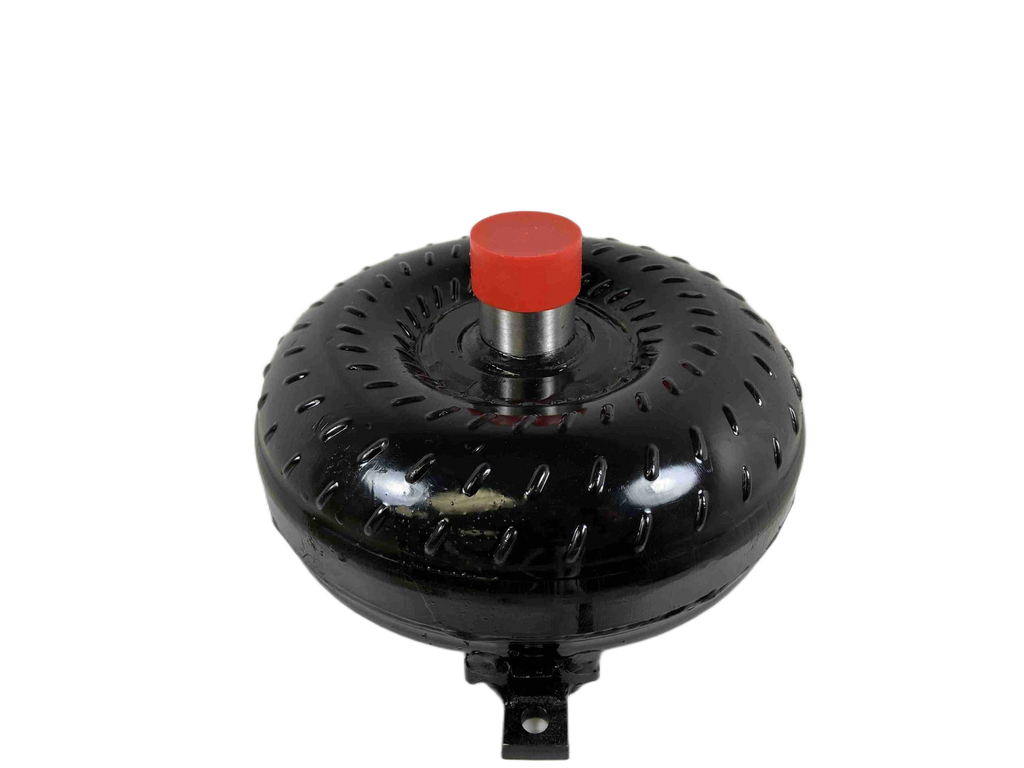

700R4 298mm Out Law 28-3,200 RPM Lock Up GM Racing Torque Converter Part Number 48744

GM Chevy 700R4 / 200R / 298mm Out Law Racing Series Torque Converter

Unlock the true potential of your drivetrain with our heavy-duty, performance-grade torque converter. Specifically engineered for powerful setups including Nitrous Oxide, Turbochargers, Superchargers, and Trans-Brakes, this converter is built to withstand extreme duty cycles while providing optimized power transfer for Choppy Cams and lightweight race vehicles. Experience superior reliability and peak performance with this precision-machined, racing-grade unit.

Key Specifications

• Torque Converter Series: Out Law Racing Series
• Application Fitment: GM Chevy 700R4, 200R, 298mm (LT Type Engines)
• Input Shaft: 30 Spline Input Shaft (Ideal for 3-step input shaft)
• Stall Range: 2,800 – 3,200 RPM
• Core/Bolt Details: 9.6 inch Core, 10.75 inches Bolt Circle
• Construction: Super Lightweight Converter, Torrington Style Incased Bearings
• Machining/Assembly: Precision CNC Machined (1.703 inch Crank Pilot), Anti-Balloon Plates
• Materials/Finish: Whole Back Cover Quenched and Hardened, Pump & Turbine Fins Welded or Furnace-Brazed

Advanced Construction Details

This torque converter is built for competitive use and severe duty applications, ensuring durability under high stress:

• Modified Extreme Duty Stator and blades for superior performance.
• Integrated Extreme Duty Lock Up mechanism, sealed on the back side of the Turbine.
• High-precision assembly includes Anti-Balloon Plates and a 3/8 X 16 TPI Bolt Size (Grade 8 hardware required).
• Features areLeak & Pressure Tested and Digitally Balanced for flawless operation.

Installation Guidance

• Use Type F Transmission Fluid for optimal performance.
• Always utilize an additional transmission cooler when operating under high power adders.
• Apply Blue Loctite during assembly to ensure critical connections hold under race conditions.

Important Note: All advertised stall speeds are relative to a specific vehicle's setup. Actual performance specifications will vary based on your application. Please contact us for tailored advice.

Building High Performance & Racing Converters Since 1970!
