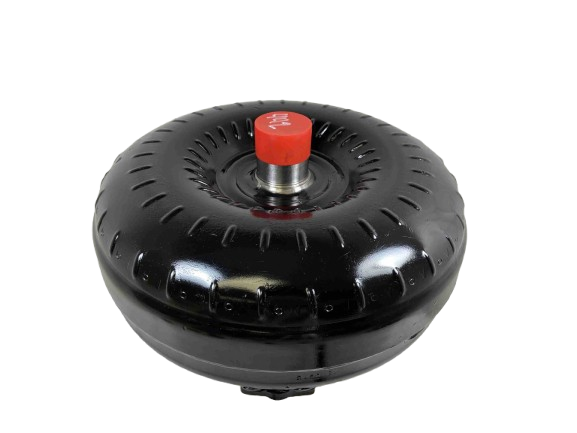

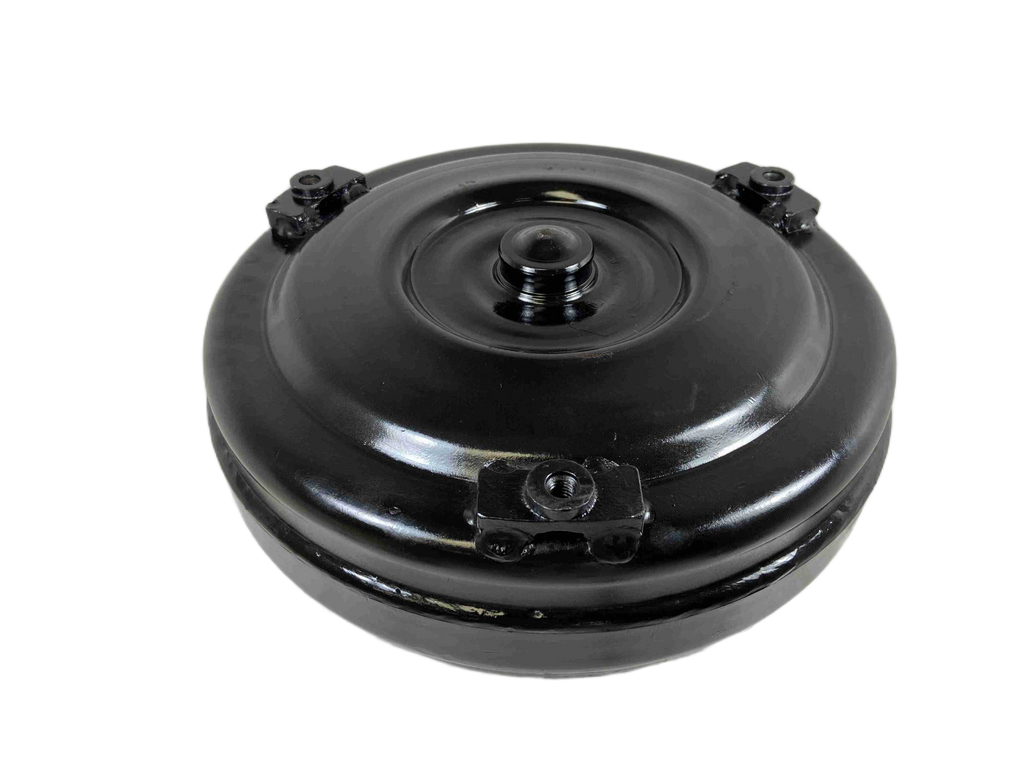

700R4 298mm Night Stalker 22-2,800 RPM Lock Up GM Torque Converter Part Number 48442

GM Chevy 700R4 Night Stalker Series Torque Converter - Part Number 48442

Ensure flawless performance and reliable shifting in your LT series engine with this high-quality torque converter. Built for extreme duty applications, our Night Stalker Series unit provides the perfect balance of durability and power transfer required for aggressive driving conditions, including racing and hard-use applications.

This torque converter is manufactured to stringent standards, featuring a durable build quality and rigorous testing processes. It combines essential factory features with performance upgrades to handle high torque loads while maintaining efficient operation.

Technical Specifications

• Transmission Compatibility: 700R4
• Series: Night Stalker Series
• Part Number: 48442
• Application: LT Type Engines, suitable for 3-step input shafts
• Stall Range: 2,200 - 2,800 RPM
• Core Size: Factory 12 inch bore
• Input Shaft: 30 Spline, Hardened Chrome Moly Impeller Hub
• Bolt Circle Diameter: 10.75 inches
• Crank Pilot Size: Factory 1.703 inch
• Drain Bolt Size: 10MM X 1.5 Pitch Class 10
• Construction Features: Torrington Style Incased Bearings, Modified Heavy Duty Stator, Extreme Duty Lock Up
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, 4 Corner Tac Welded Fins or Furnace Brazed

Installation and Maintenance Guidance

• Use Type F transmission fluid for optimum performance.
• Install an additional transmission cooler to manage heat during hard use.
• Apply Blue Loctite to drain bolts for maximum retention and reliability.

Important Installation Notes

• Stall ranges are based on specific vehicle setups and may vary depending on your application. Please contact us for detailed consultation regarding your setup.

Building High Performance & Racing Converters Since 1970! For advanced applications or customized builds, we recommend upgrading to our Street Bandit Series if you have modified intake, headers, exhaust, cam, or gearing. For extreme power adders (Nitrous Oxide, Turbocharger, Supercharger), consider our Out Law Series.
