4R100 E40D 6 Bolt Street Bandit 28-3,200 RPM Lock Up Ford Torque Converter Part Number 24463

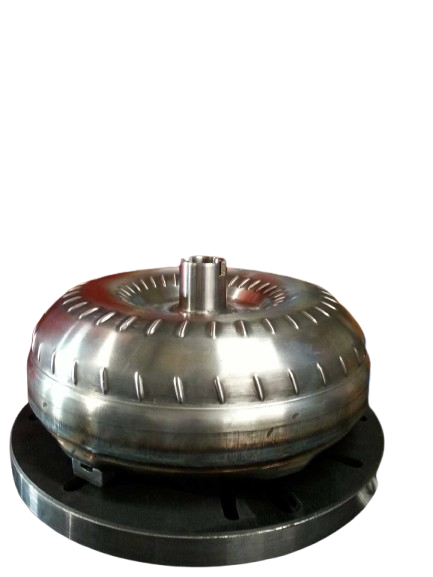

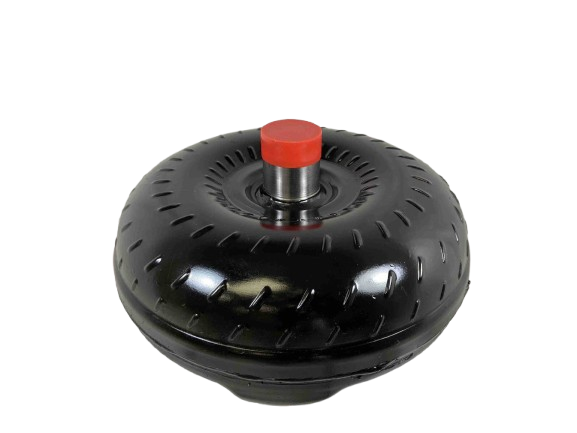

Night Stalker Series Torque Converter - FORD 4R100 E40D | Part #24463

Upgrade your drive train with our high-performance Night Stalker Series Torque Converter, specifically engineered for the FORD 4R100 E40D transmission. Designed for reliability and aggressive performance, this converter provides a perfectly matched installation with advanced features built to handle extreme duty applications while maintaining factory fitment standards.

Key Product Specifications

• Part Number: 24463
• Series Name: Night Stalker Series
• Transmission Application: FORD 4R100 E40D
• Stall Range: 2,800 – 3,200 RPM
• Core Diameter: Factory 12-inch Core, Bolt Circle: Factory 11.4 inch
• Input Shaft: 31 Spline Input Shaft

Advanced Construction & Features

• Modified Extreme Duty Stator for optimized performance.
• Hardened Chrome Molly Impeller Hub provides superior durability.
• Torrington Style Incased Bearings ensure smooth, long-lasting operation.
• Extreme Temp Heavy Duty O-ring provides superior sealing integrity.
• Oversized Extreme Duty Single Disk Lock Up for dependable engagement.
• 1.375 inch Crank Pilot accommodates standard driveline setups.
• Leak and Pressure Tested; Digitally Balanced for hassle-free installation.
• Massively constructed with 4 Corner Tac Welded Fins or Furnace Brazed for maximum heat dissipation.
• Includes 6 Lug Bolt Pattern and bolted together with a factory-style 3/8 x 24 TPI Grade 8 Nut.

Installation & Performance Notes

• Use Type F Transmission Fluid for optimal cooling and performance.
• Always install a transmission cooler to manage heat buildup during aggressive use.

Important Customer Information

• Advertised stall ranges are dependent on the specific vehicle and application setup.
• For installation advice, compatibility confirmation, or further questions regarding your vehicle setup, please contact us at 888-267-7464.

Proudly MADE IN THE USA and backed by our commitment to building high performance components since 1970. Quality inspections are performed at every step of manufacturing.
