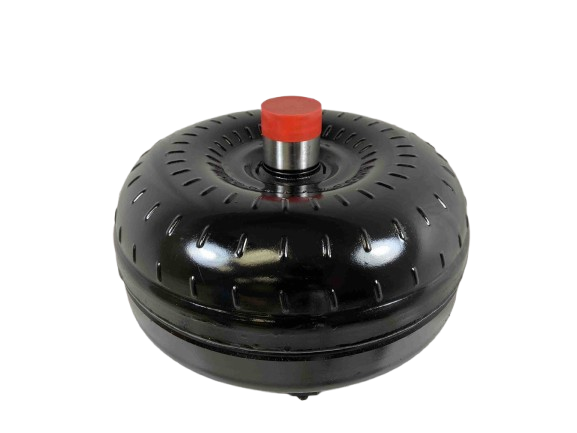

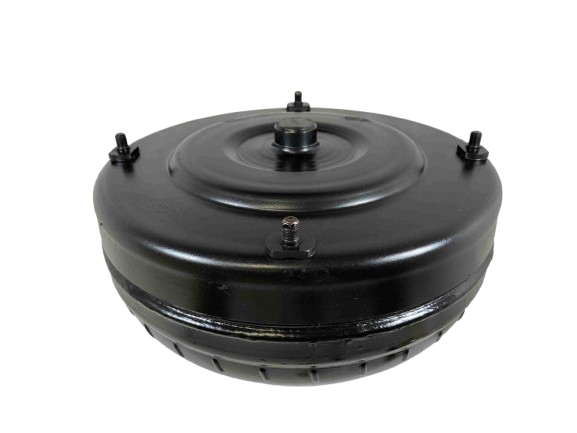

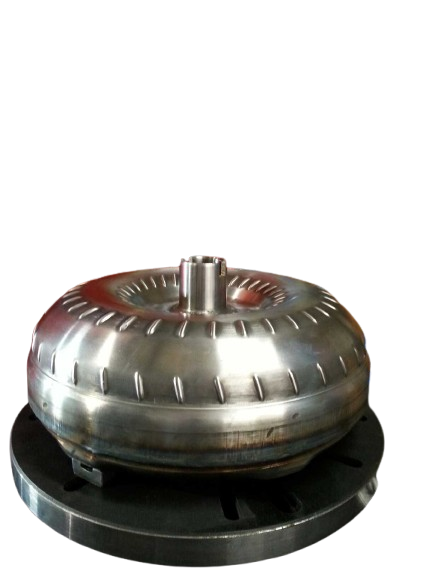

4R100 E40D 6 Bolt Night Stalker 22-2,800 RPM Lock Up Ford Torque Converter Part Number 24462

Night Stalker Series Torque Converter for Ford 4R100 E40D Transmission

Engineered in the USA, this extreme duty torque converter is specifically designed for high-performance applications requiring reliability and superior performance. As part of our acclaimed Night Stalker Series, this converter provides the robust coupling necessary to handle demanding driving conditions while offering a precise stall range calibrated for optimal power transfer.

Built with mission-critical components including a Modified Extreme Duty Stator, hardened chrome impeller hub, and Torrington style encased bearings, this unit undergoes rigorous quality inspections, including leak and pressure testing, ensuring peak performance right out of the box.

Product Specifications

• Transmission Compatibility: Ford 4R100 E40D
• Series Lineage: Night Stalker Series
• Part Number: 24462
• Stall Range: 2,200 - 2,800 RPM
• Input Shaft Spline: 31 Spline
• Bolt Pattern: 6 Lug, Factory 12 inch Bolt Circle
• Torque Converter Clutch (TCC): Oversized Extreme Duty Single Disk Lock Up
• Fluid Capacity: Factory 12 inch Core
• Crank Pilot Diameter: 1.375 inch
• Fluid Specification Note: Requires Nut Size 3/8 by 24 TPI Grade 8 ONLY
• Construction: Modified Extreme Duty Stator, Hardened Chrome Molly Impeller Hub
• Bearing Type: Torrington Style Incased Bearings

Key Performance Details

• Digitally balanced for reduced vibration and smooth operation.
• Constructed with 4 corner TIG welded fins or furnace brazed for superior heat dissipation.
• Features extreme temperature heavy-duty O-ring seals for maximum leak resistance.
• Includes Anti-Balloon Plates, ensuring predictable stall characteristics under load.

Application Guidance

• Use Type F Transmission Fluid for best operational performance.
• Pairing with an additional transmission cooler is recommended for sustained high-performance use.

Important Installation Information

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your application.
• For precise compatibility checks or installation details, please contact our technical support team at 888-267-7464.

Building high performance & racing converters since 1970! Proudly Made in the USA.
