4R100 E40D 4 bolt Street Bandit 28-3,200 RPM Lock Up Ford Torque Converter Part Number 24403

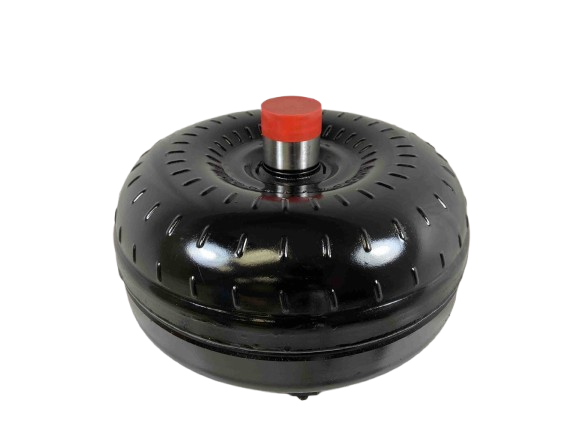

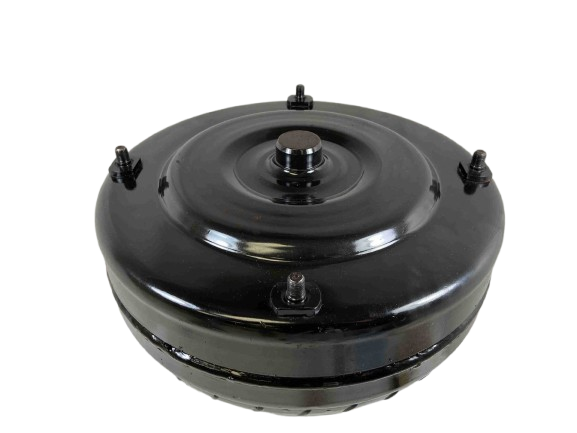

FORD 4R100 E40D Night Stalker Series Torque Converter - Part #24403

Ensure peak performance and reliability in your transmission system with our heavy-duty Night Stalker Series Torque Converter, specifically engineered for the FORD 4R100 E40D. Constructed with extreme-duty components and quality inspections at every step, this converter provides durable performance matched with precise engineering. Built in the USA, this unit is ready to handle the demands of your vehicle.

Product Specifications

• Transmission Type: FORD 4R100 E40D
• Series: Night Stalker Series
• Part Number: 24403
• Stall Range: 2,800 - 3,200 RPM
• Input Shaft: 31 Spline Input
• Stator: Modified Extreme Duty Stator
• Impeller Hub: Hardened Chrome Molly Impeller Hub
• Bearings: Torrington Style Incased Bearings

Key Features

• Oversized Extreme Duty Single Disk Lock Up
• Extreme Temp Heavy Duty O-ring for leak prevention
• Digitally Balanced construction
• 4 Corner tac Welded Fins or Furnace Brazed cooling lines
• Factory 12 inch Core with Factory 11.4 inch Bolt Circle
• Leak & Pressure Tested upon completion

Installation Details

• Bolt Pattern: 4 Lug Bolt Pattern
• Crank Pilot Diameter: 1.375 inch
• Nut Specification: 3/8 by 24 TPI Grade 8 ONLY
• Anti-Balloon Plates: No

Performance Guidance

• Use Type F Transmission Fluid for optimal operational results.
• Always install an additional transmission cooler to maximize performance and longevity.

Important Considerations

• All advertised stall speeds are based on a specific vehicle's setup and may vary depending on your application. Please contact us with details for accurate fitment information.

Building High Performance & Racing Converters Since 1970! For further information or installation assistance, please contact us at 888-267-7464.
