4L60E 4L65E 4L70E 300mm Street Bandit 28-3,200 RPM Big Block 400 454 6.0 Direct Fit Lock Up Lock GM Torque Converter Part Number 49813

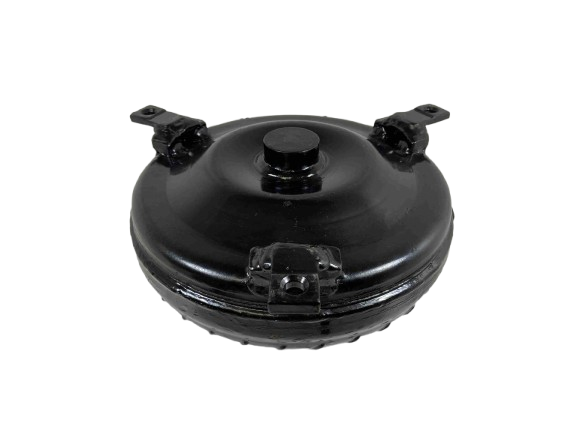

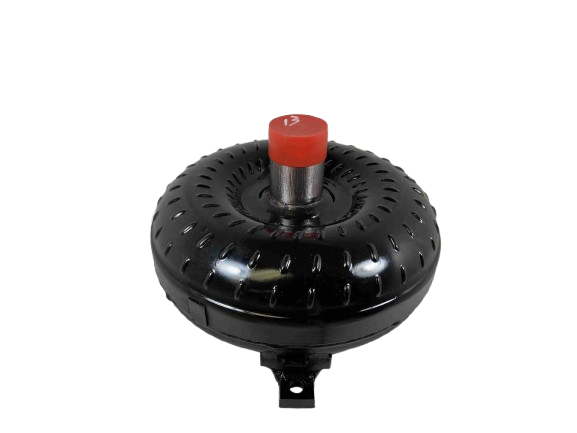

Street Bandit Series Direct Fit Torque Converter | 4L60E/4L65E/4L70E Application

Upgrade your powertrain with our high-performance Street Bandit Series Torque Converter. Engineered for reliable performance and extreme duty applications, this CNC machined converter is the perfect match for building high-performance vehicles running 400, 454, and 6.0 engines. Designed for choppier cams and lightweight builds, this unit delivers a matched quality connection between your engine power and driveshaft response.

Key Product Specifications

• Series: Street Bandit Series
• Application Match: Direct Fit for 400, 454 & 6.0 Engines
• Transmission Compatibility: GM 4L60E, 4L65E, 4L70E
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch Core
• Bolt Circle Diameter: Factory BIG BLOCK (11.5 inches)
• Crank Pilot Diameter: 1.703 inch Precision Pilot
• Input Shaft Splines: 30 Spline Input Shaft

Construction & Quality Features

• Extreme Duty Lock Up operation for maximum efficiency.
• Hardened Chrome Moly Hub combined with Torrington Style Incased Bearings for superior durability.
• Modified Heavy Duty Stator ensures robust fluid management under extreme pressure.
• Precision CNC Machined components and Digitally Balanced for smooth operation.
• Constructed with a 3/8 X 16 TPI (GRADE 8 ONLY) bolt size.
• Features NO Anti-Balloon Plates and is securely assembled using 4 Corner Tac Welded or Furnish Brazed method.
• All units undergo rigorous Quality Inspections, Leak & Pressure Testing before shipping.

Installation Information

• Utilize Old School Type F Transmission Fluid for optimal operating performance.

Important Setup Notes

• Advertised stall ranges are based on a specific vehicle's setup. Actual performance will vary depending on your installation configuration.
• For guidance specific to your build, please contact our technical support team at 888-267-7464.

Trusted by enthusiasts and professionals alike, we have been building high-performance solutions since 1970. Made in the USA.
