4L60E 4L65E 4L70E 300mm Out Law 42-5,000 RPM LT Direct Fit Lock Up GM Racing Torque Converter Part Number 49615

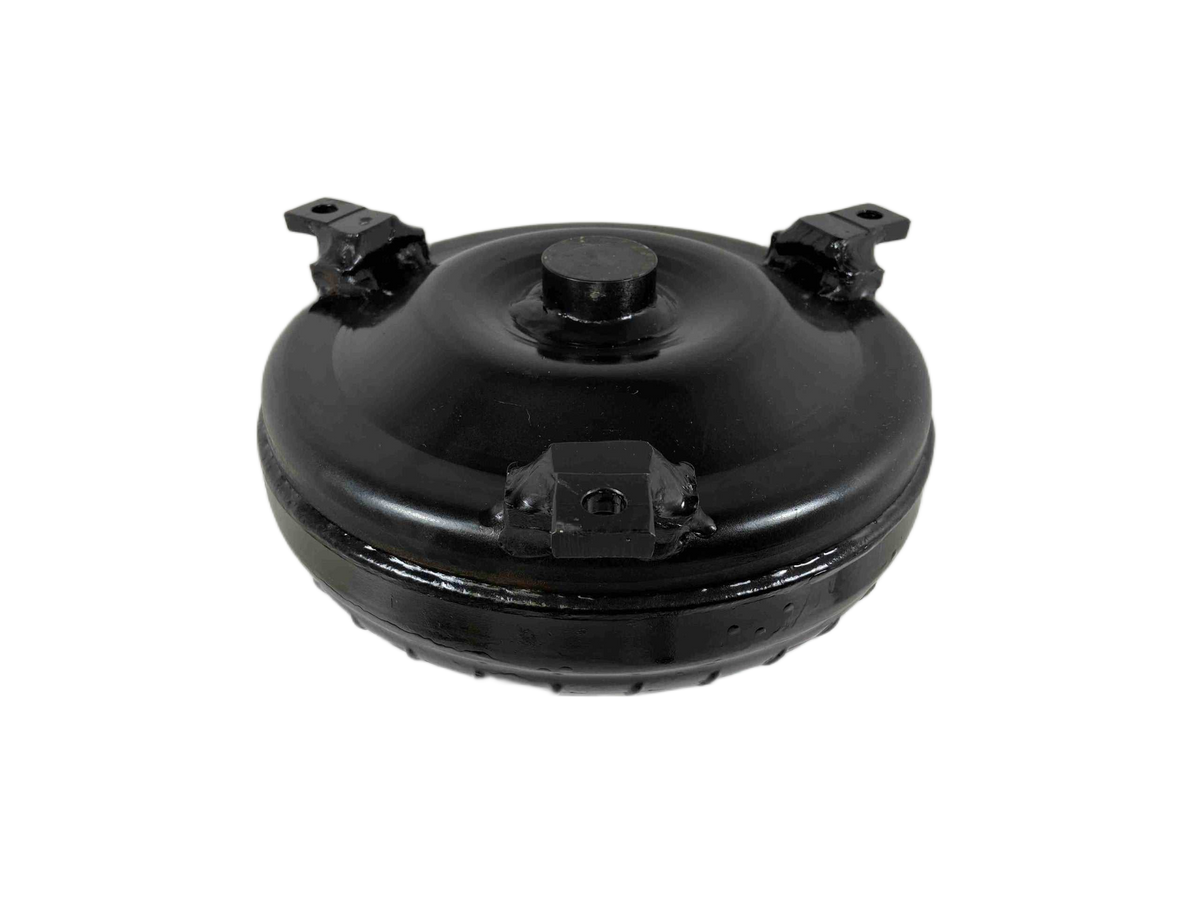

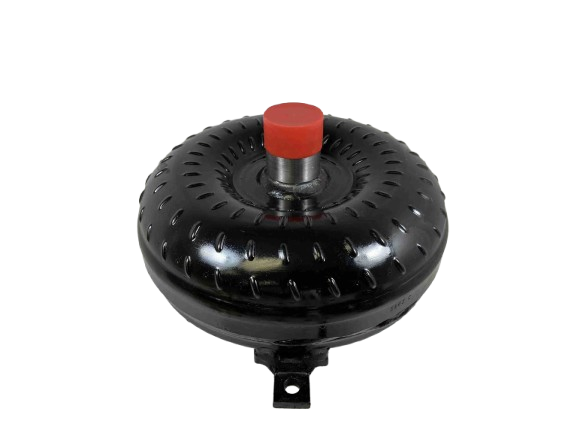

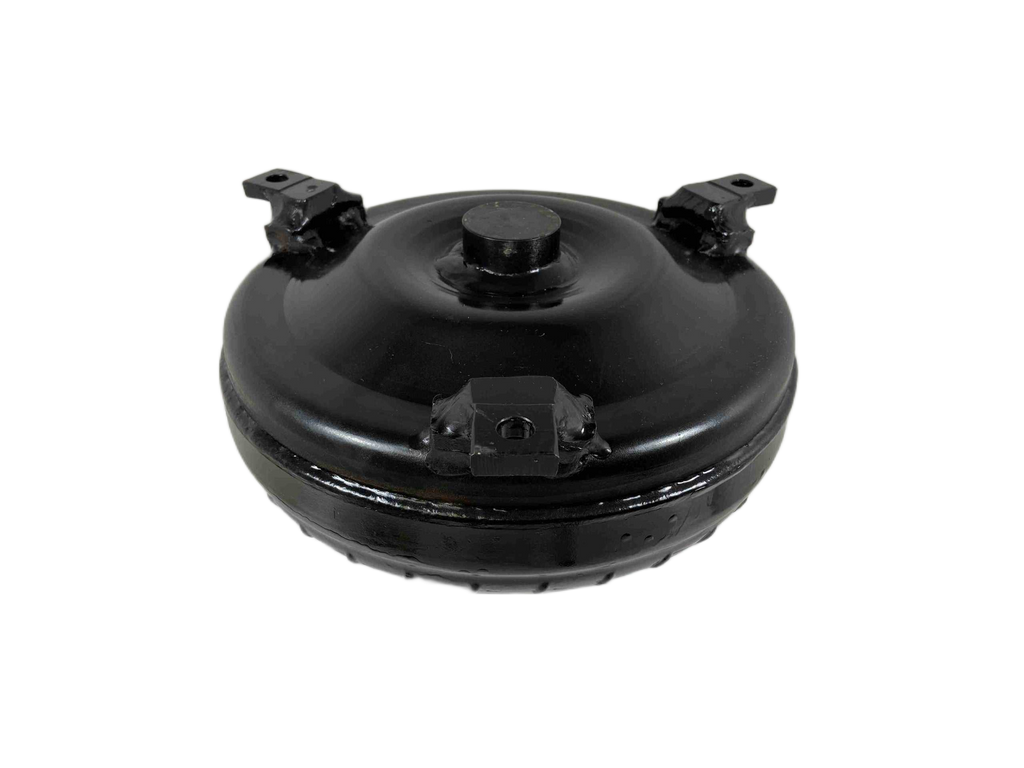

Street Bandit Series 300mm Torque Converter - Direct Fit for GM 4L60E, 4L65E, & 4L70E

Achieve unparalleled performance and durability with our Street Bandit Series Torque Converter. Precision engineered for high-performance applications, this heavy-duty unit offers a robust lock-up capability while maintaining the efficiency required for demanding drives. This converter is a factory direct fitment replacement for LT and earlier type GM engines, ensuring seamless installation in your performance build.

Ideal for aggressive drives pairing choppy cams with lightweight vehicles, this converter is built to handle the extreme demands of nitrous oxide setups, turbo applications, superchargers, and high-speed transmissions.

Technical Specifications

• Application Fitment: GM 4L60E, 4L65E, 4L70E & Earlier Type Engines
• Series: Street Bandit Series (300mm)
• Stall Range: 4,200 – 5,000 RPM
• Core Size: 9.6 inch Core Diameter
• Input Shaft: 30 Spline Input, Hardened Chrome Moly Hub
• Crank Pilot: 1.703 inch Precision Bore
• Bolt Circle Diameter: Factory LS Bolt Circle (11.063 inches)
• Bolting Hardware: 3/8 X 16 TPI Bolt Size (Grade 8 recommended)
• Construction: Precision CNC Machined components including Anti-Balloon Plates and Whole Back Cover.
• Durability Features: Torrington Style Incased Bearings, Modified Heavy Duty Stator, Extreme Duty Lock Up.
• Quality Assurance: Digitally Balanced, Leak & Pressure Tested upon arrival.

Installation and Performance Guide

• Ensure use of Old School Type F Transmission Fluid for optimal performance and longevity.

Important Notes

• All advertised stall ranges are dependent upon the specific vehicle's setup. Performance will vary based on your application requirements. Please contact us for personalized advice and information regarding fitting ranges.

Trust our expertise. We have been building high-performance and racing converters since 1970! MADE IN THE USA.

For technical consultation or volume inquiries, please contact us at 888-267-7464. Ask about our "No Prep Racing Converters."
