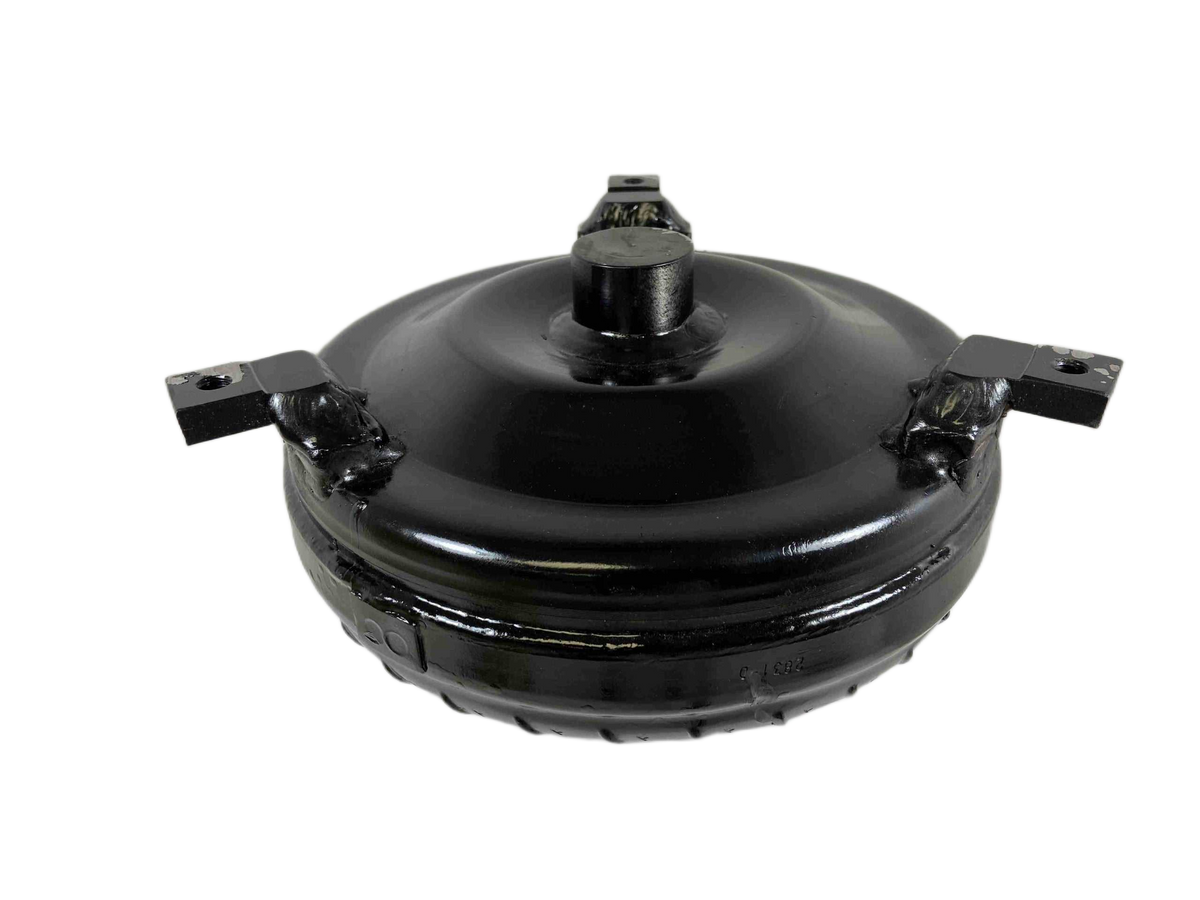

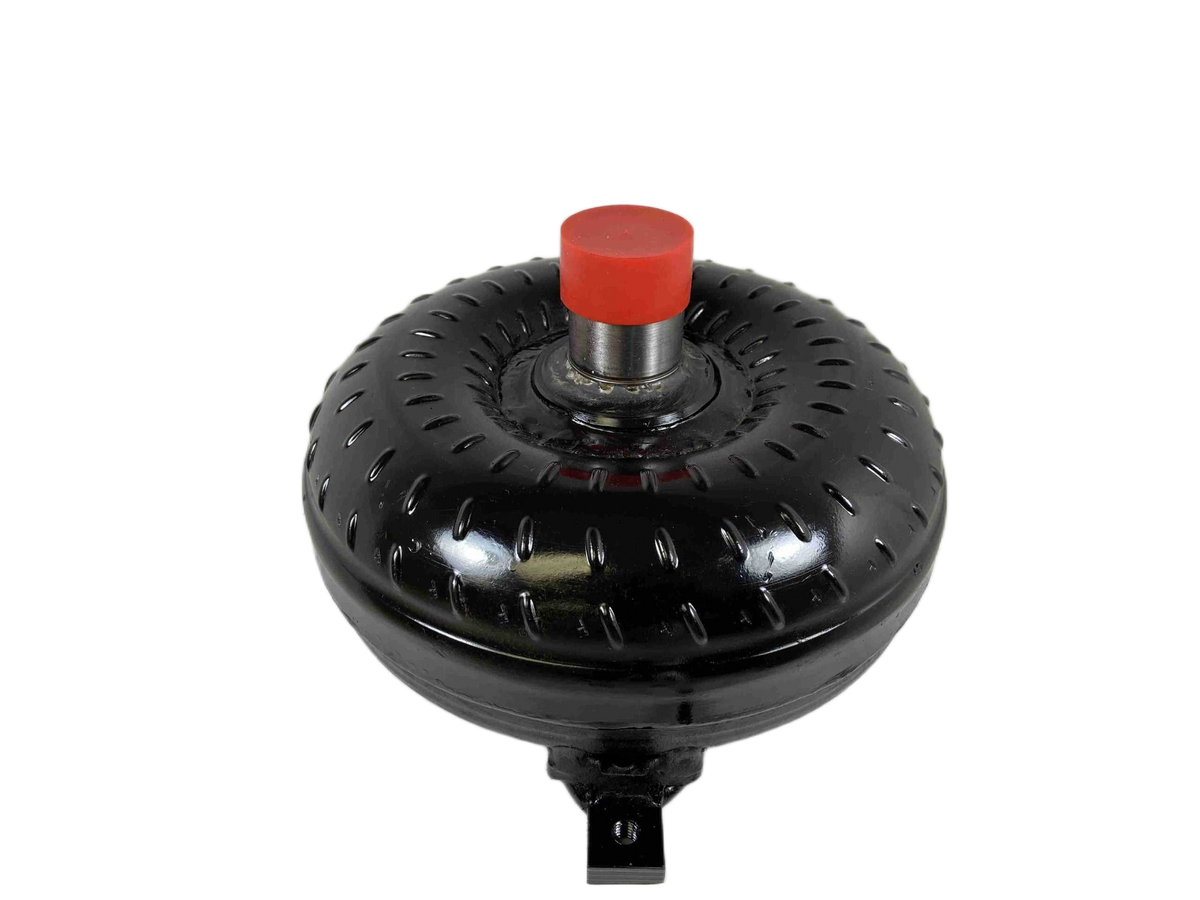

4L60E 4L65E 4L70E 300mm LS Street Bandit Series 28-3,200 RPM Lock Up GM Torque Converter Part Number 49463

Street Bandit Series Torque Converter - Fits GM Chevy 4L60E, 4L65E, 4L70E (LS Engines)

Enhance your powertrain with our premium Street Bandit Series Torque Converter, specifically engineered for modern LS applications. Designed for choppier cams and lightweight setups, this converter delivers superb driving characteristics while offering reliability when you need it most. Experience seamless performance and a precise lock-up with this high-quality, machine-built conversion unit.

Key Specifications

• Transmission Compatibility: GM Chevy 4L60E, 4L65E, 4L70E
• Application: LS Engines (300mm applications, 1998 & Up)
• Part Number: 49463
• Series/Type: Street Bandit Series, SUPER Lightweight Lock Up Converter
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inch
• Input Shaft: 30 Spline Input Shaft
• Bolt Circle Diameter: 11.063 inch
• Crank Pilot Size: 1.703 inch
• Impeller Hub: Hardened Chrome Molly Impeller Hub
• Bearings/Build: Torrington Style Incased Bearings, Extreme Temp Heavy Duty O-ring
• Fluid Compatibility: Fits Type F Transmission Fluid

Detailed Construction

Built with durability and performance in mind, this converter features rigorous quality controls at every stage of production. It includes a Digitally Balanced design and is leak and pressure tested before shipment, ensuring maximum reliability in your drive train.

• Bolt Size: 3/8 X 16 TPI (Grade 8 bolts required)
• Construction: 4 Corner tac Welded Fins or Furnace Brazed Plates
• Features: Extreme Duty Lock Up, Anti-Balloon Plates (Not Included)

Application Notes

• All advertised stall ranges are based on a specific vehicle setup; actual stalls will vary depending on your installation.
• For detailed application information or specific setup advice, please contact us at 888-267-7464.
• For high-performance applications involving power adders (Nitrous, Turbocharger, Supercharger), we recommend upgrading to our Outlaw Series Torque Converter.

Performance Recommendations

• For optimal performance and lifespan, use Type F Transmission Fluid.
• Utilizing a transmission cooler is advised for extended durability and consistent performance.
• Applying Blue Loctite to fasteners enhances longevity and secure installation.
