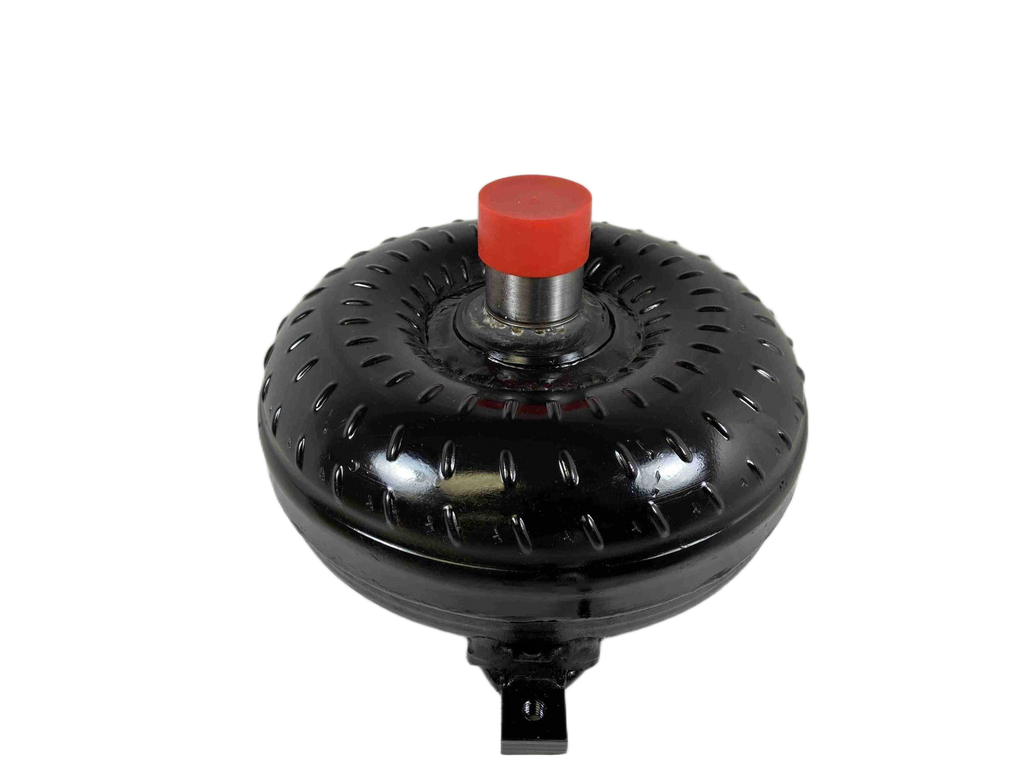

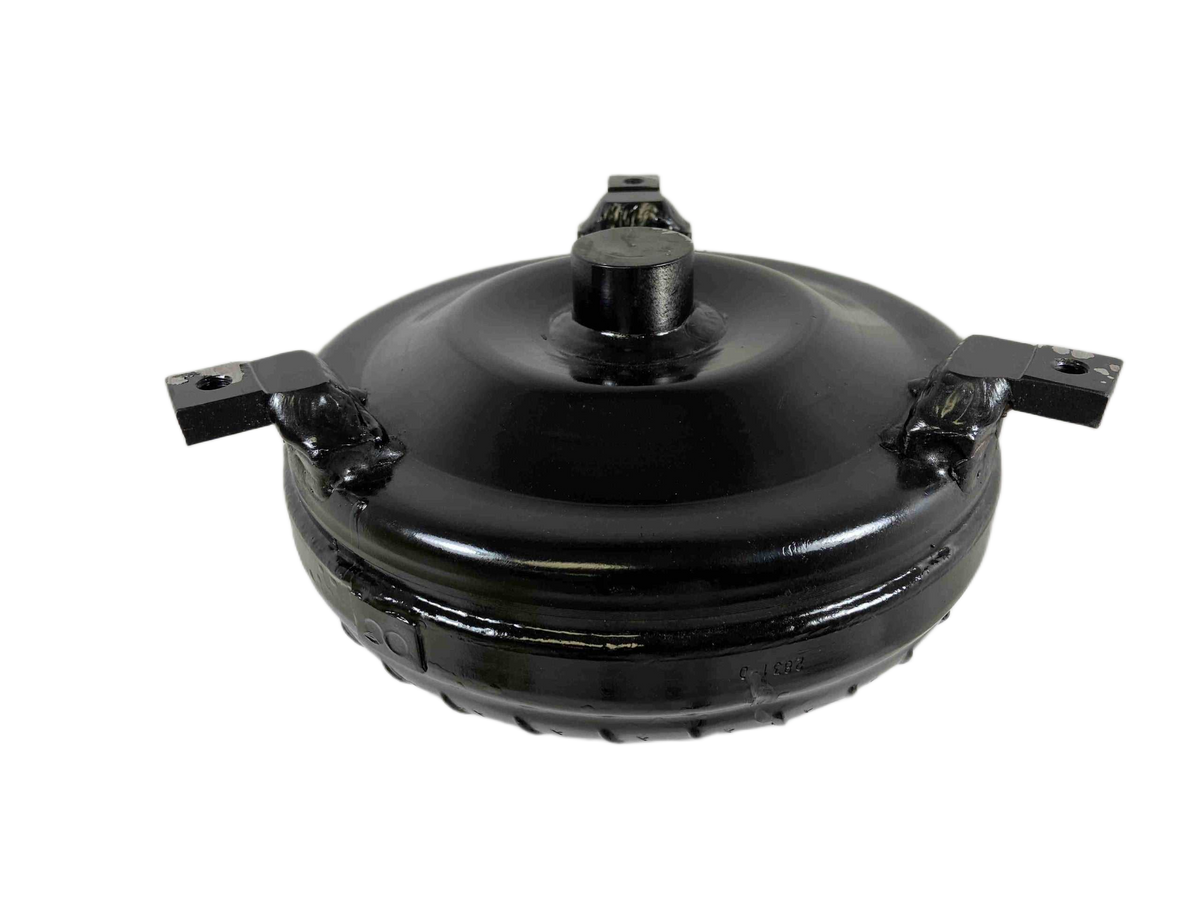

4L60E 4L65E 4L70E 300mm LS Street Bandit 22-2,800 RPM NON-Lock Up GM Torque Converter Part Number 49072

Street Bandit Series Torque Converter | GM 4L60E/4L65E/4L70E - Part #49072

Ensure reliable power transfer and perfect shifting with our Street Bandit Series Torque Converter, designed specifically for GM Chevy applications (4L60E, 4L65E, and 4L70E). This high-performance replacement is built with meticulous engineering to handle demanding street duty while offering the rugged durability expected from a premium racing component. If you are building high performance into your transmission, selecting the right mating components is crucial for optimal performance and longevity.

Key Product Specifications

• Application Fitment: GM Chevy 4L60E, 4L65E, 4L70E (LS Engines)
• Series: Street Bandit Series
• Part Number: 49072
• Stall Range: 2,200 – 2,800 RPM
• Core Diameter: 9.6 inch
• Bolt Circle: 11.063 inch
• Input Shaft: 30 Spline, accommodates 2-step input shaft
• Crank Pilot Diameter: 1.703 inch
• Impeller Hub: Hardened Chrome Molly, Leak & Pressure Tested
• Bearing System: Torrington Style Incased Bearings
• Construction Detail: Pump & Turbine Fins are 4 Corner Tac Welded or Furnish Brazed
• Testing: Digitally Balanced and Ready for Installation

Installation & Performance Notes

• Stated stall ranges are based on specific vehicle configurations and may vary depending on your actual setup. Please contact us for application-specific consultation regarding performance expectations.
• For severe duty applications involving power adders (Nitrous Oxide, Turbocharger, Supercharger, or Transmission Brake), we highly recommend upgrading to our Out Law Series torque converter.

Installation Tips

• Utilize Type F transmission fluid for the most consistent and optimal operational performance.
• Always install a dedicated transmission cooler to maintain fluid temperature integrity during demanding drives.
• Applying Blue Loctite is advised for maximum component security during installation.
