4L60E 298mm LT Street Bandit 32-3,500 RPM NON-Lock Up GM Torque Converter Part Number 49024

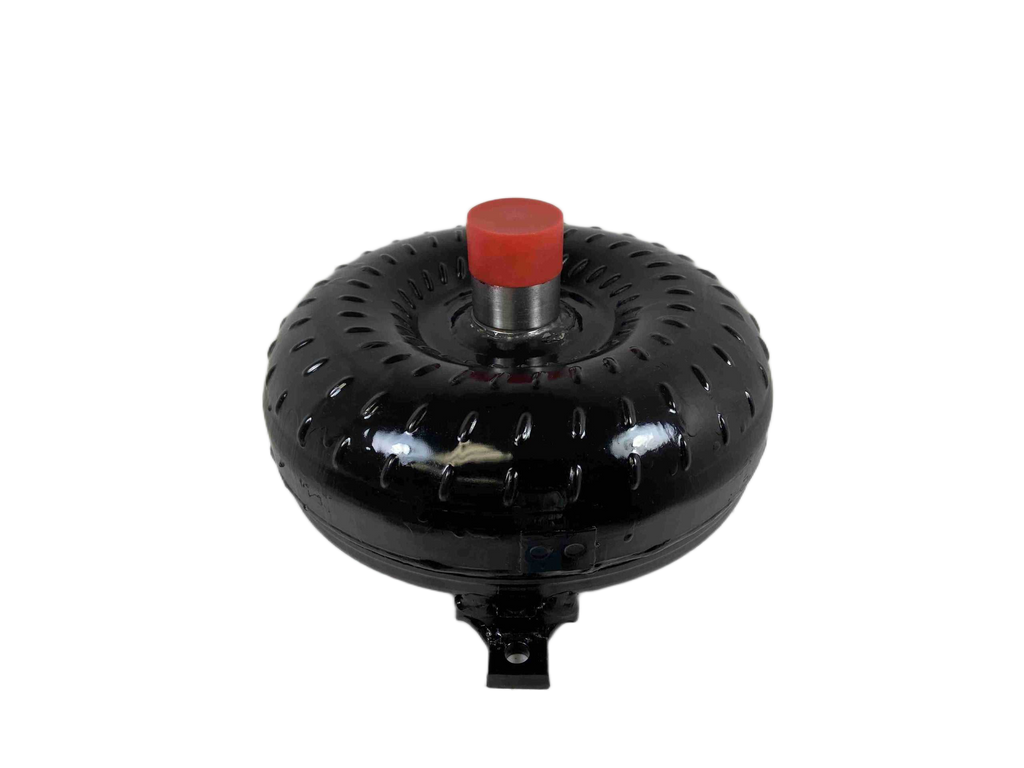

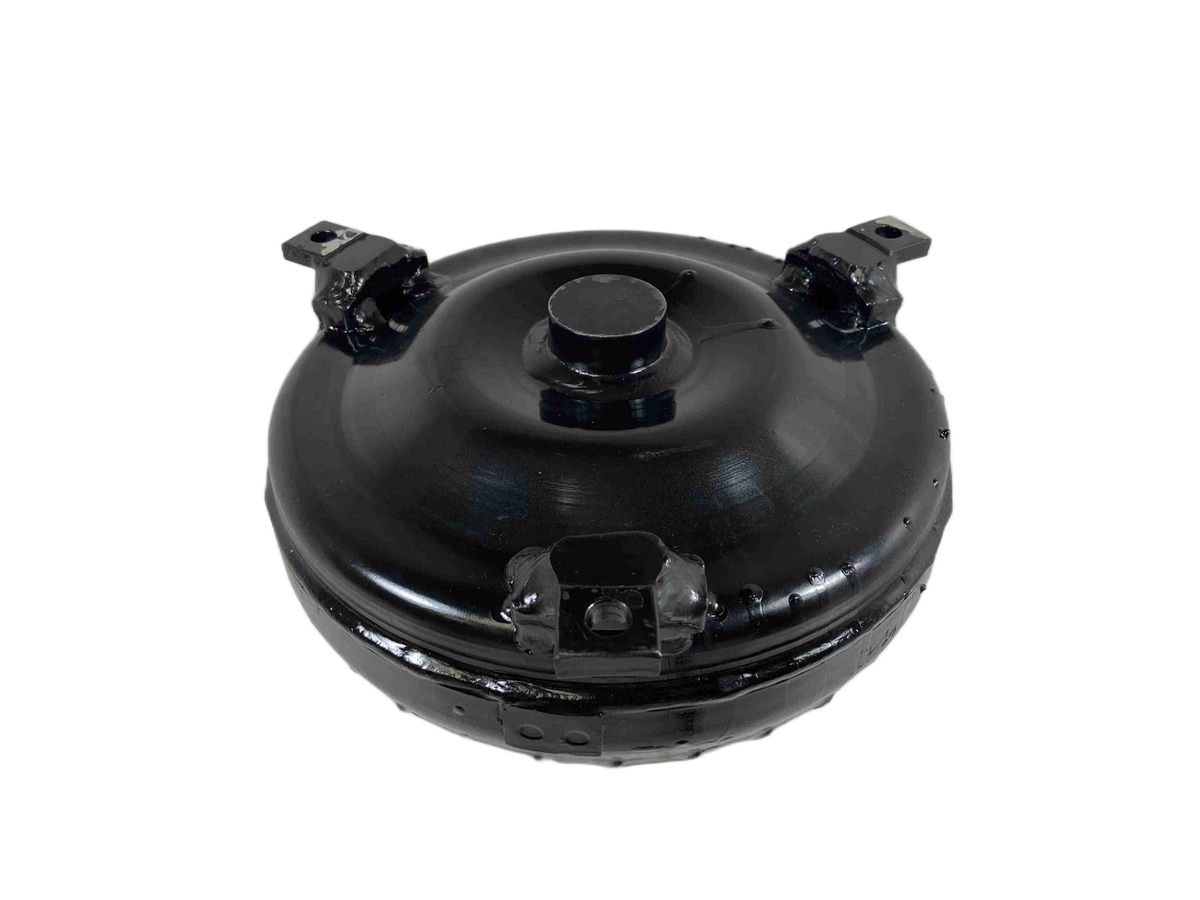

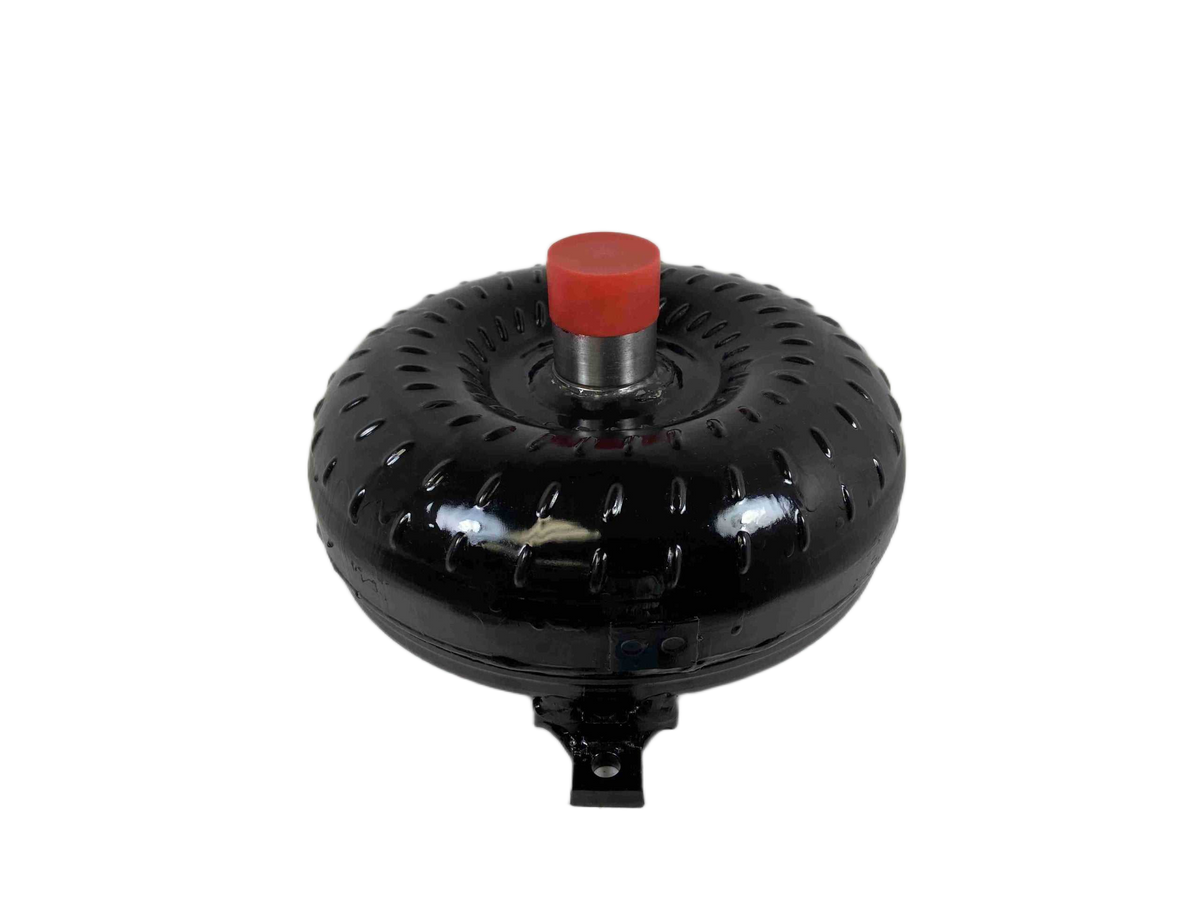

GM Chevy 4L60E Street Bandit Series Torque Converter - Part #49024

Engineered for enthusiasts demanding reliability and performance, this Super Lightweight Racing Torque Converter is the perfect upgrade for your LT type or earlier GM applications featuring a 3 Step Input Shaft. Manufactured in the USA, this high-quality converter provides exceptional durability and stall control necessary to match your performance upgrades. Restore dependability or push boundaries with our premium Street Bandit Series build.

Key Performance Specifications

• Transmission Application: 4L60E
• Torque Converter Series: Street Bandit
• Part Number: 49024
• Stall RPM Range: 3,200 - 3,500 RPM
• Core Diameter: 9.6 inch
• Bolt Circle Diameter: 10.75 inches
• Input Shaft Detail: 30 Spline

Premium Construction & Build Details

• Impeller Hub: Hardened Chrome Moly
• Bearings: Torrington Style Incased Bearings for smooth operation
• Stator: Modified Extreme Duty Stator
• Plateage: No Anti-Balloon Plates included
• Quality Assurance: Leak & Pressure Tested, Digitally Balanced, and inspected at every step
• Mounting Hardware: Bolt Size 3/8 X 16 TPI (Grade 8 only)
• Construction: 4 Corner Tac Welded Fins or Furnace Brazed

Installation & Maintenance Notes

• Use Type F transmission fluid for optimal performance.
• Always utilize an additional transmission cooler to manage heat effectively.
• Blue Loctite is recommended for securing proper fasteners.
• Advertised stall ranges are based on specific vehicle setups and may vary depending on your application. Contact us for detailed information.
• For maximum power transfer, we recommend matching your torque converter series upgrade to significant powertrain modifications (e.g., use Out Law Racing Series if installing Nitrous, Turbocharger, or Supercharger).
