4L60E 298mm LT Street Bandit 28-3,200 RPM Lock Up GM Torque Converter Part Number 49433

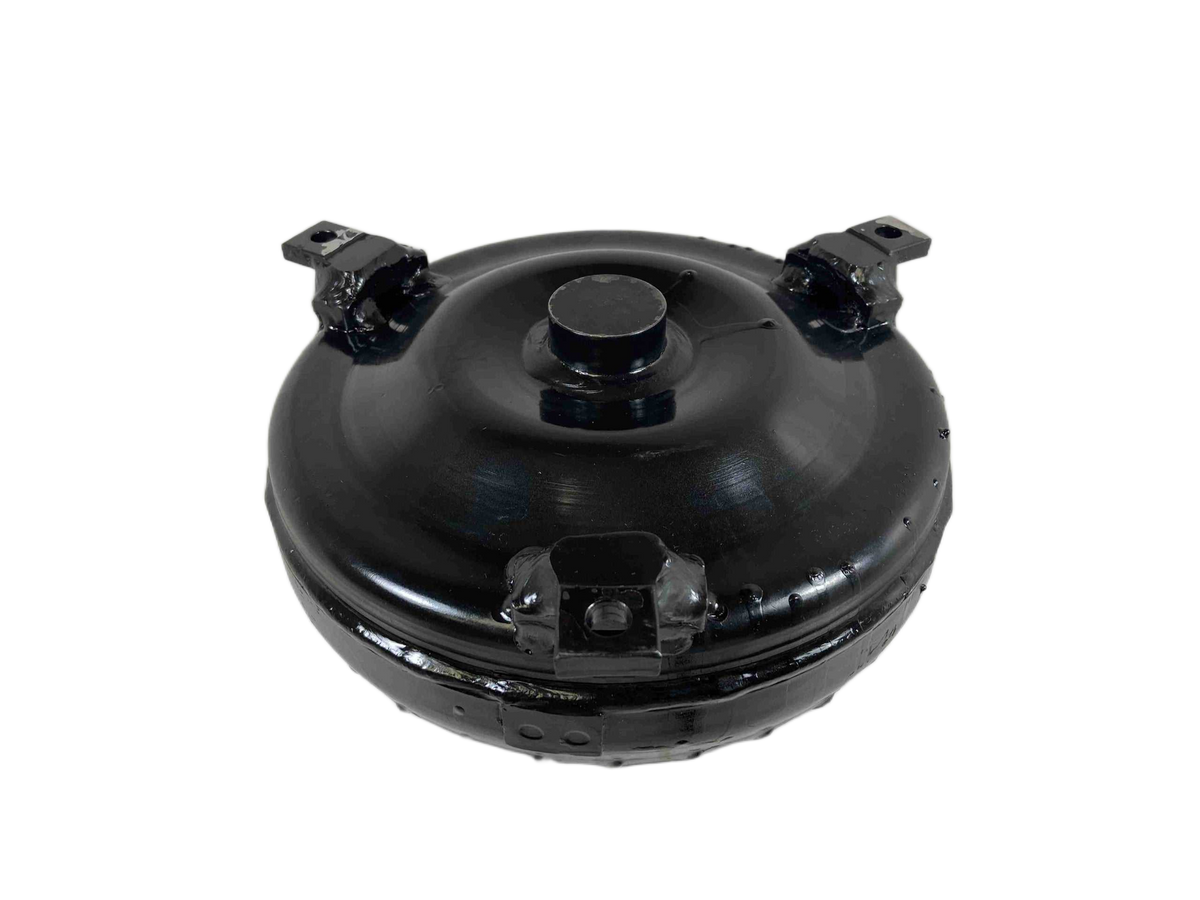

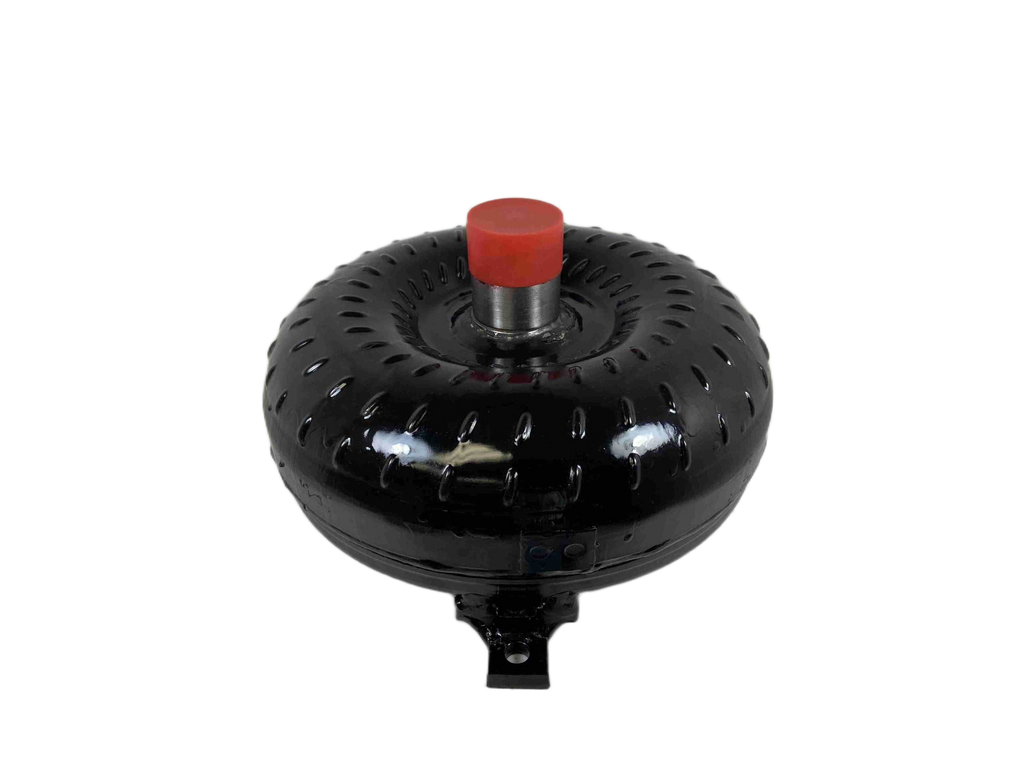

GM Chevy 4L60E Street Bandit Series Torque Converter (Part #49433)

Experience dependable, high-performance shifts with our Street Bandit Series Torque Converter. Specifically designed for LT type Engines (up to and through 1997) utilizing a 3 Step Input Shaft, this heavy-duty unit offers superior driving characteristics, making it ideal for chopped cams and lightweight vehicles. Engineered for reliability and performance, this converter ensures a robust match to your powertrain setup.

Technical Specifications

• Transmission Fitment: GM Chevy 4L60E
• Series: Street Bandit Series
• Part Number: 49433
• Torque Converter Diameter: 298mm (9.6 inch Core)
• Stall Range: 2,800 - 3,200 RPM Stall
• Input Shaft: 30 Spline
• Bolt Circle: 10.75 inches
• Torque Converter Type: Super Lightweight, Extreme Duty Lock Up Racing Converter

Key Performance Features

• Hardened Chrome Moly Impeller Hub construction
• Torrington Style Incased Bearings for smooth operation
• Modified Extreme Duty Stator design
• Extreme Duty Lock Up provides a solid, efficient match
• Factory 1.703 inch Crank Pilot
• Anti-Balloon Plates included
• Digitally Balanced for optimal performance and longevity
• High-quality manufacturing with 4 Corner Tac Welded or Furnace Brazed Fins

Installation & Usage Guide

• Use Type F Transmission Fluid for best results
• Always utilize an additional transmission cooler
• Use Blue Loctite for proper assembly and service

Important Considerations

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your application.
• For detailed consultation regarding performance tuning or installation, please contact us at (888) 267-7464.
• For builds involving high power adders (Nitrous, Turbocharger, Supercharger, or Trans Brake), we recommend upgrading to our Outlaw Racing Series torque converter.
