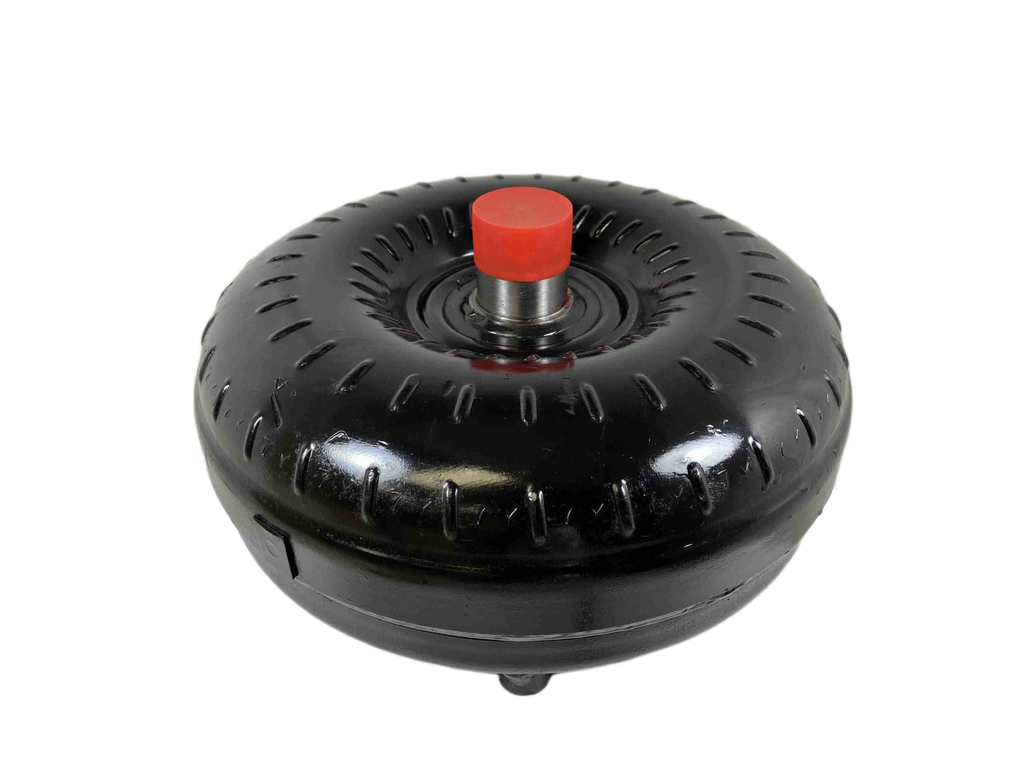

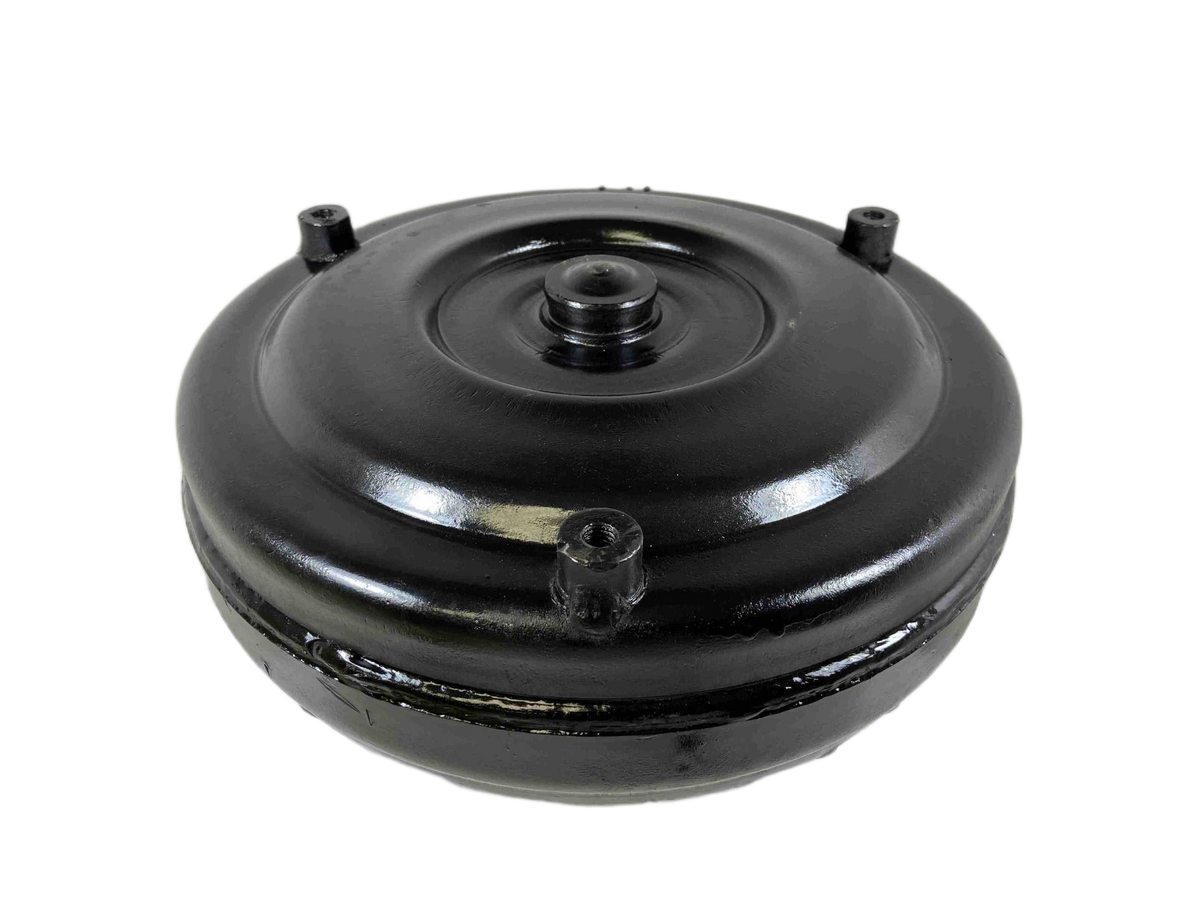

200R 700R4 Night Stalker Stock Replacement No Stall Added Lock Up GM Torque Converter Part Number 48400

GM Chevy 700R4 & 200R Torque Converter - Night Stalker Series

Enhance your drivetrain with this high-quality torque converter, specifically engineered for LT type engines and 3-step input shaft applications. Part number 48400 is built to handle the stresses of your setup while offering reliable performance. This Night Stalker Series converter balances factory specifications with extreme duty components, ensuring smooth operation and maximum longevity.

Key Product Specifications

• Torrington Style Incased Bearings
• Modified Heavy Duty Stator and Extreme Duty Lock Up
• Extreme Temp Heavy Duty O-ring seals
• Factory 1.703 inch Crank Pilot
• Bolt Circle: 10.75 inches
• 27 Spline Input Shaft (Count the smaller splines)
• Bolt Size: 10MM X 1.5 Pitch
• No Anti-Balloon Plates
• Leak & Pressure Tested and Digitally Balanced
• 4 Corner Tac Welded Fins or Furnace Brazed case

Performance Details

• Transmission Compatibility: 700R4, 200R
• Series Designation: Night Stalker Series (LT Type Engines)
• Stall Range: Stock Stall – NO Additional Stall Added

Installation & Maintenance Guidance

• Use Type F Transmission Fluid for optimal performance.
• Always incorporate a transmission cooler to manage heat buildup.
• Apply Blue Loctite during assembly for secure installation.

Important Notes

• All advertised stall ranges are dependent on a specific vehicle's setup and may vary upon installation. Please contact us for personalized advice.
• For maximizing performance upgrades (e.g., intake, headers, cam, or gearing), consider upgrading to our Street Bandit Series torque converter.
• If running power adders such as Nitrous, Turbocharger(s), or Supercharger, we recommend the Out Law Series torque converter.

We are dedicated to building high-performance and racing converters since 1970. Trust our veteran and family-owned company for quality that lasts.
