2004R 700R4 298mm Street Bandit 32-3,500 RPM Lock Up GM Torque Converter Part Number 48404

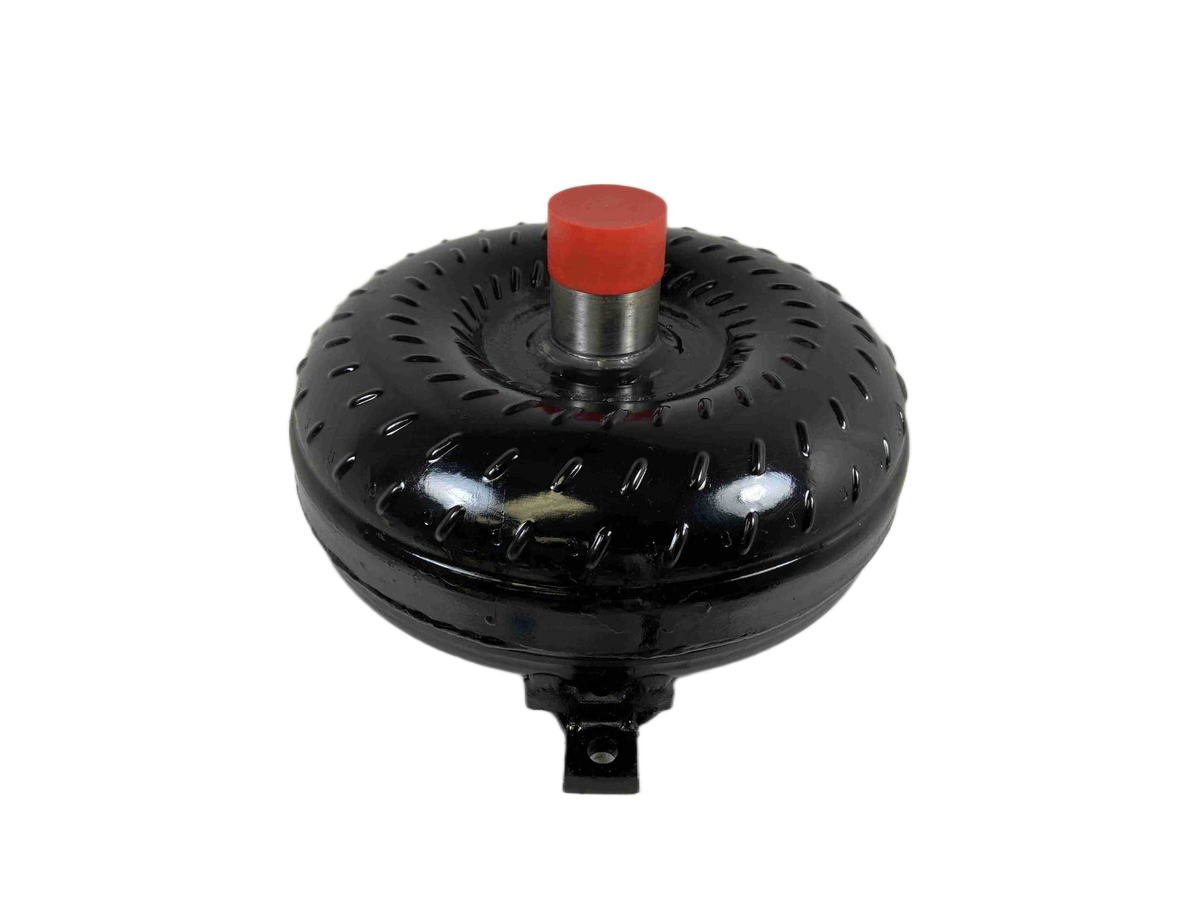

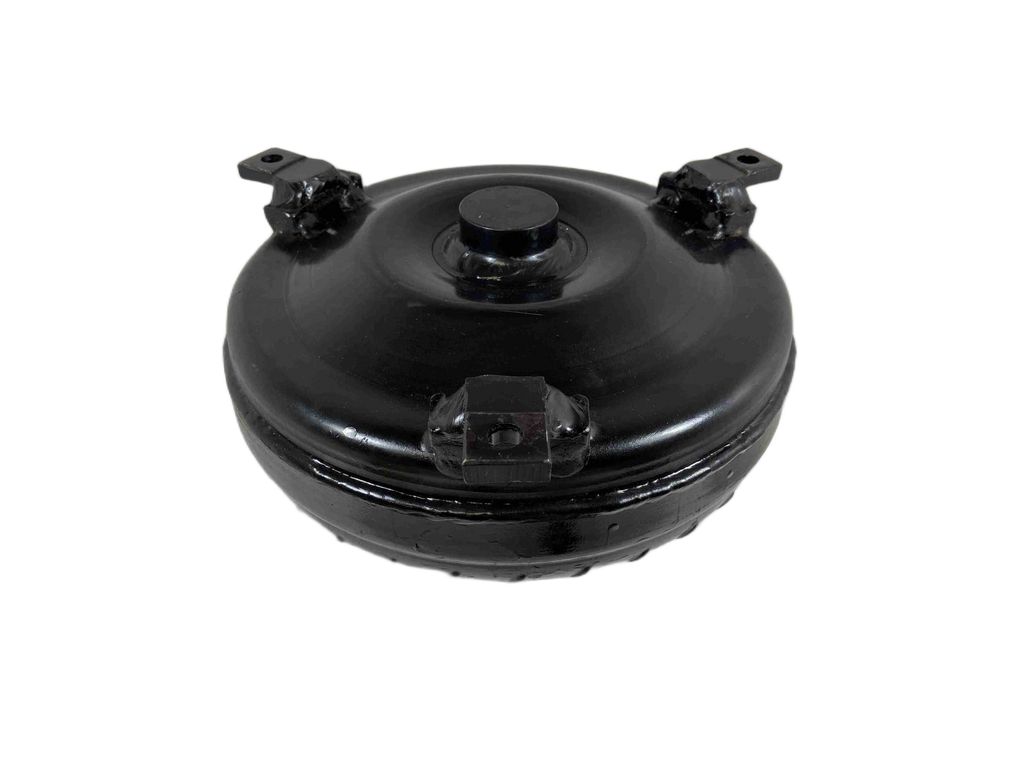

Street Bandit Series Torque Converter - GM Chevy 700R4/200R (Part No. 48404)

Engineered for maximum reliability and aggressive performance, this Street Bandit Series torque converter is the perfect match for LT type transmissions requiring a robust and lightweight lock-up solution. Designed with durability in mind, this 298mm converter handles high demands while maintaining unparalleled quality through rigorous manufacturing processes.

The combination of a modified heavy-duty stator and extreme-duty lock-up ensures that your power transfer is swift, solid, and dependable across various driving conditions. Restoring or building a high-performance drivetrain? This CNC machined unit provides the foundation for serious muscle.

Key Specifications

• Application: GM Chevy 700R4 / 200R, LT Type Engines
• Series: Street Bandit Series
• Part Number: 48404
• Size: 298mm / 9.6 inch Core
• Input Shaft: 27 Spline Input Shaft (Matches smaller splines on top of each tooth)
• Bolt Circle Diameter: 10.75 inches
• Stall Range: 3,200 - 3,500 RPM

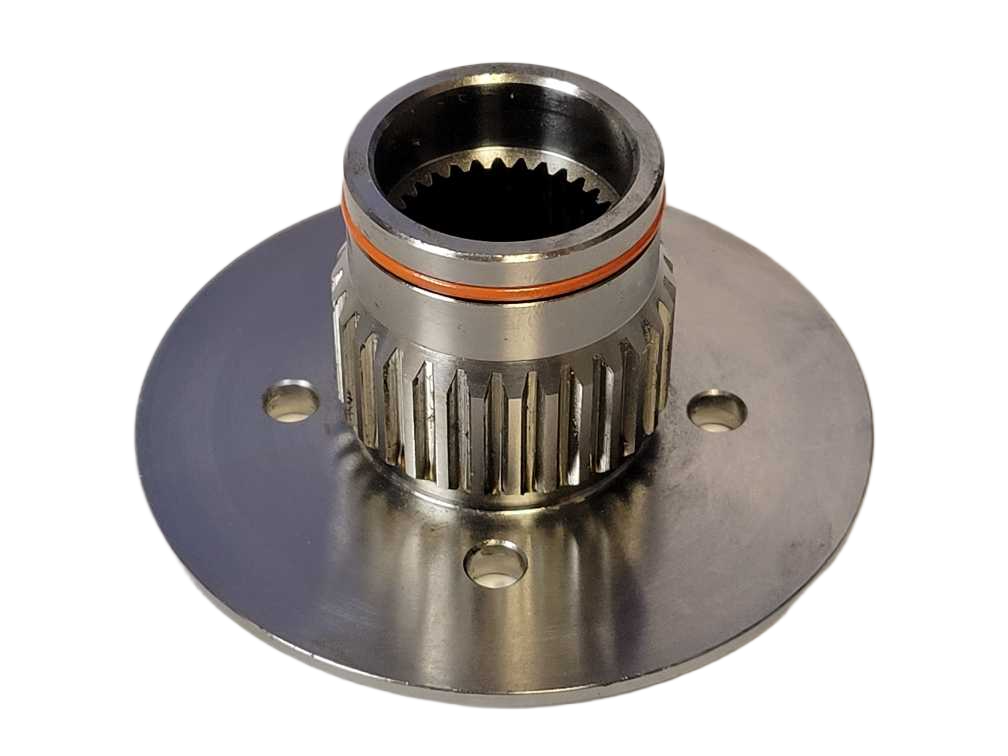

• Construction: Hardened Chrome Moly Hub with Torrington Style Incased Bearings

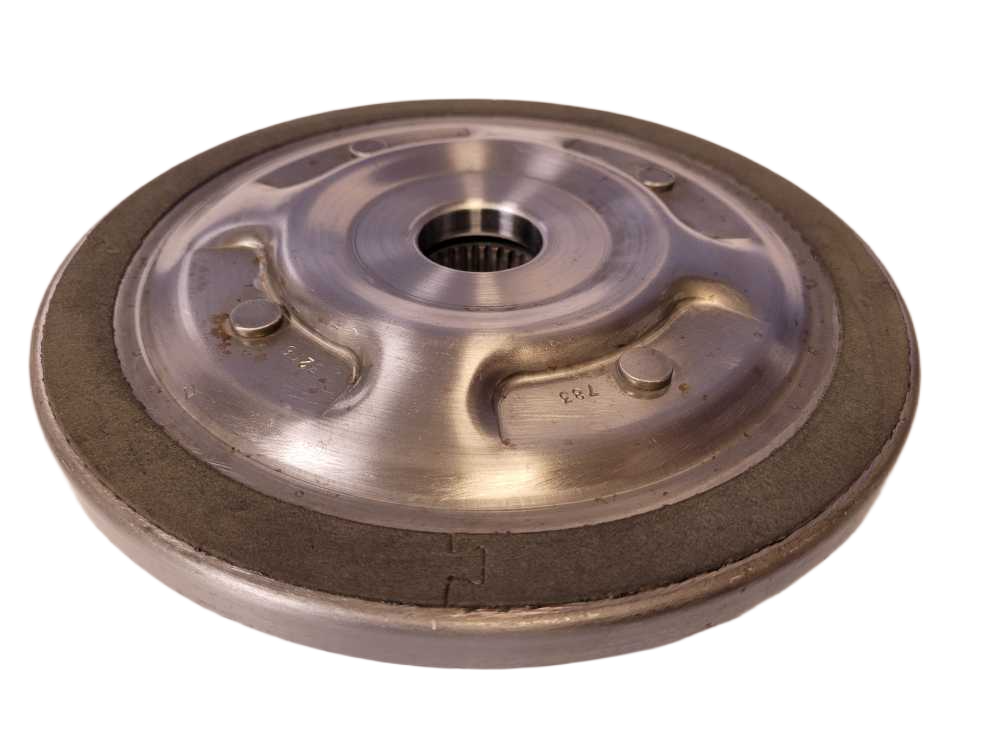

• Lock Up: Extreme Duty Lock-Up; Sealed on the back side of the Turbine Hub
• Crank Pilot Precision: 1.703 inches (CNC Machined)
• Bolt Size: 3/8 X 16 TPI (Grade 8 Hardware Required)
• Detailing: Modified Heavy Duty Stator, Anti-Balloon Plates (No), Digitally Balanced, 4 Corner Tac Welded Fins/Furnace Brazed

Expert Insights

• Use Type F ATF for the best performance and fluidity.
• Always pair with a transmission cooler for sustained high-performance builds.
• Applying Blue Loctite is recommended, especially when dealing with choppy cams or lightweight vehicles.

Important Notes

• All advertised stall ranges are based on a specific vehicle setup and may vary depending on your application.
• For detailed matching or volume information, please contact us at 888-267-7464.

Building High Performance & Racing Converters Since 1970!
