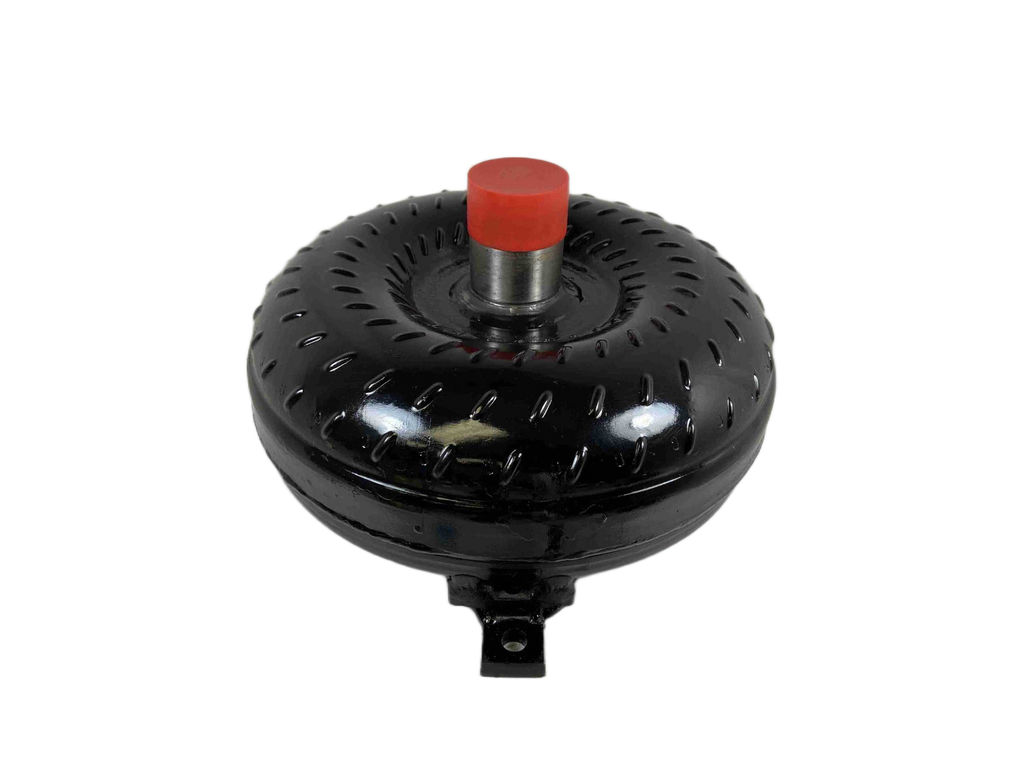

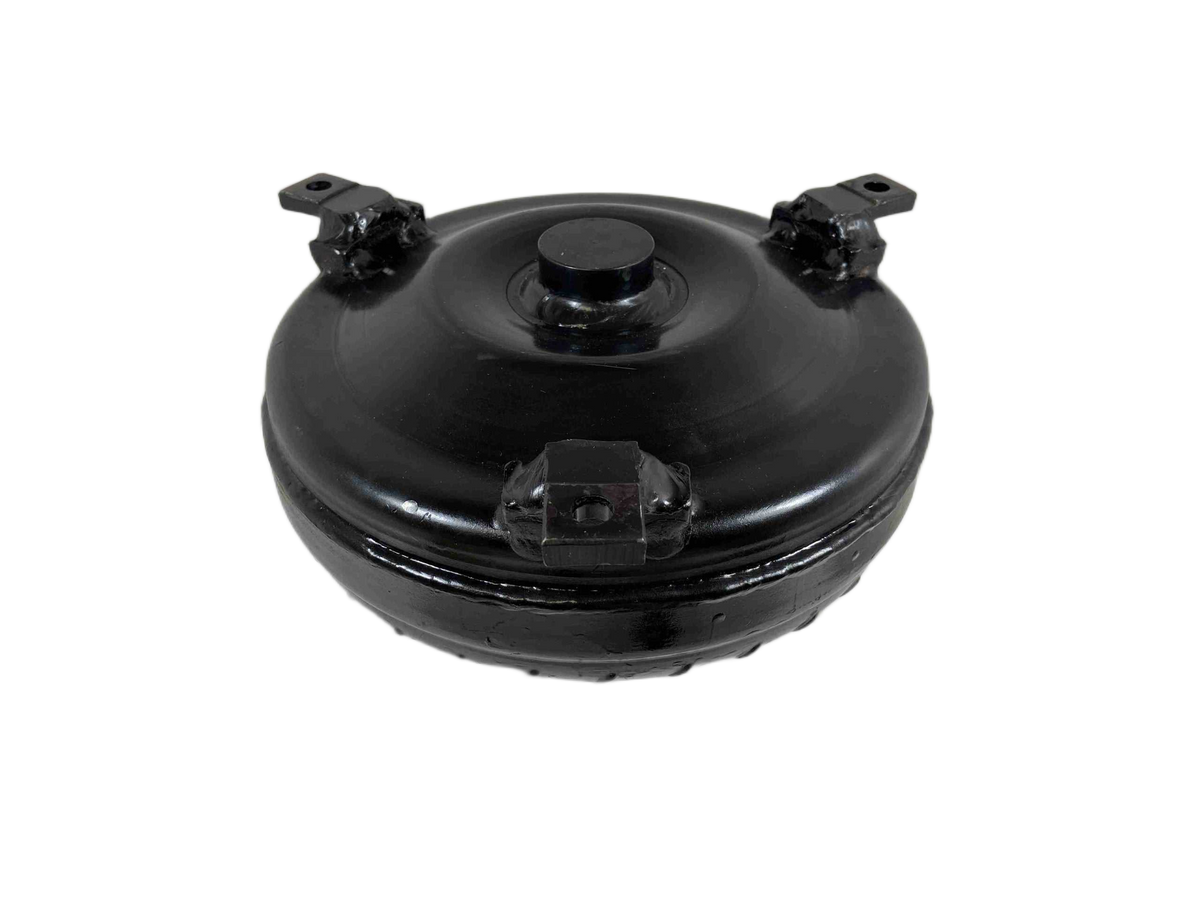

2004R 700R4 298mm Street Bandit 28-3,200 RPM Lock Up GM Torque Converter Part Number 48403

STREET BANDIT Series Torque Converter | GM Chevy 700R4 298mm - Part #48403

Engineered for reliable, high-performance applications, this Street Bandit Series torque converter is precision-machined to handle the rigors of aggressive driving while maintaining exceptional efficiency. Designed for LT type engines utilizing a 3-step Input Shaft, this unit offers a strong coupling and extreme duty lock-up capability. Experience performance backed by decades of manufacturing excellence.

Key Specifications

• Transmission Application: 700R4 / 200R
• Part Number: 48403
• Series/Size: Street Bandit Series, 298mm
• Stall Range: 2,800 - 3,200 RPM
• Core Diameter: 9.6 inches
• Bolt Circle Diameter: 10.75 inches
• Input Shaft Splines: 27 Spline (Smaller splines count)
• Construction Material: Hardened Chrome Moly Hub

Engineered for Extreme Duty

This torque converter features advanced engineering details ensuring maximum durability and performance under load:

• Torrington Style Incased Bearings provide robust, long-lasting operation.
• Modified Heavy Duty Stator combined with an Extreme Duty Lock Up mechanism ensures power transfer efficiency.
• Precision components include a 1.703-inch Crank Pilot and CNC machining for perfect fitment.
• Designed with Deleted End of Input Shaft O-Ring, lock up is sealed on the back side of the Turbine Hub for superior integrity.
• Quality assurance includes Leak & Pressure Testing, Digital Balancing, and high-quality 4 Corner Tac Welded/Furnace Brazed construction.
• Secure installation hardware includes 3/8 X 16 TPI Bolts (Grade 8 recommended) and No Anti-Balloon Plates.

Installation & Maintenance Notes

• For optimal performance, utilize Type F transmission fluid.
• Always include a Transmission Cooler in aggressive applications.
• Blue Loctite is recommended, especially for choppy cams or lightweight vehicles.

Important Disclaimers

• Stall ranges are setup-dependent; all advertised figures are based on specific vehicle configurations. Please contact us with detailed information regarding your application to confirm compatibility.
• For high-power adders such as Nitrous Oxide (NOS), Turbochargers, Superchargers, or Trans Brake setups, we recommend upgrading to an Out Law Series torque converter.
